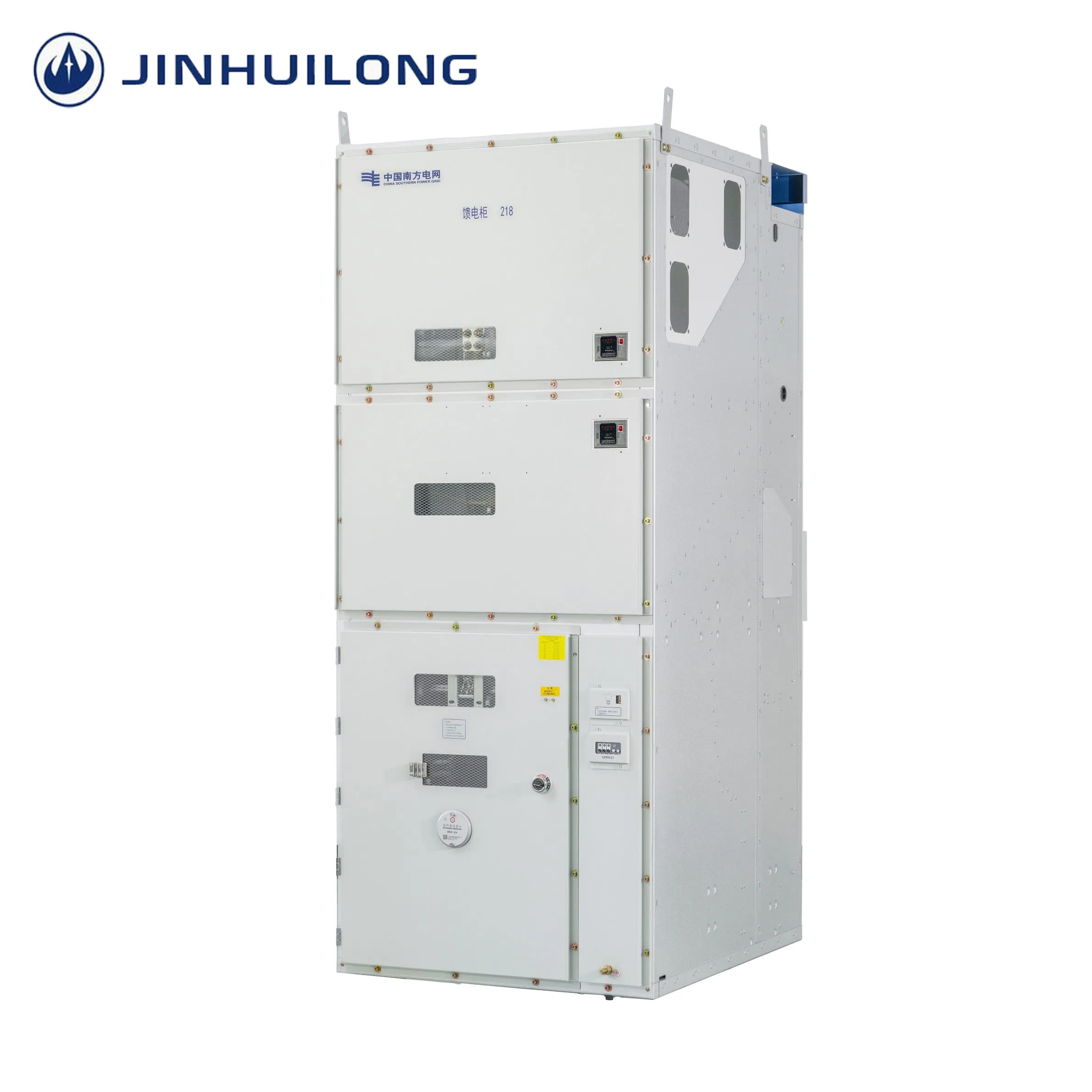

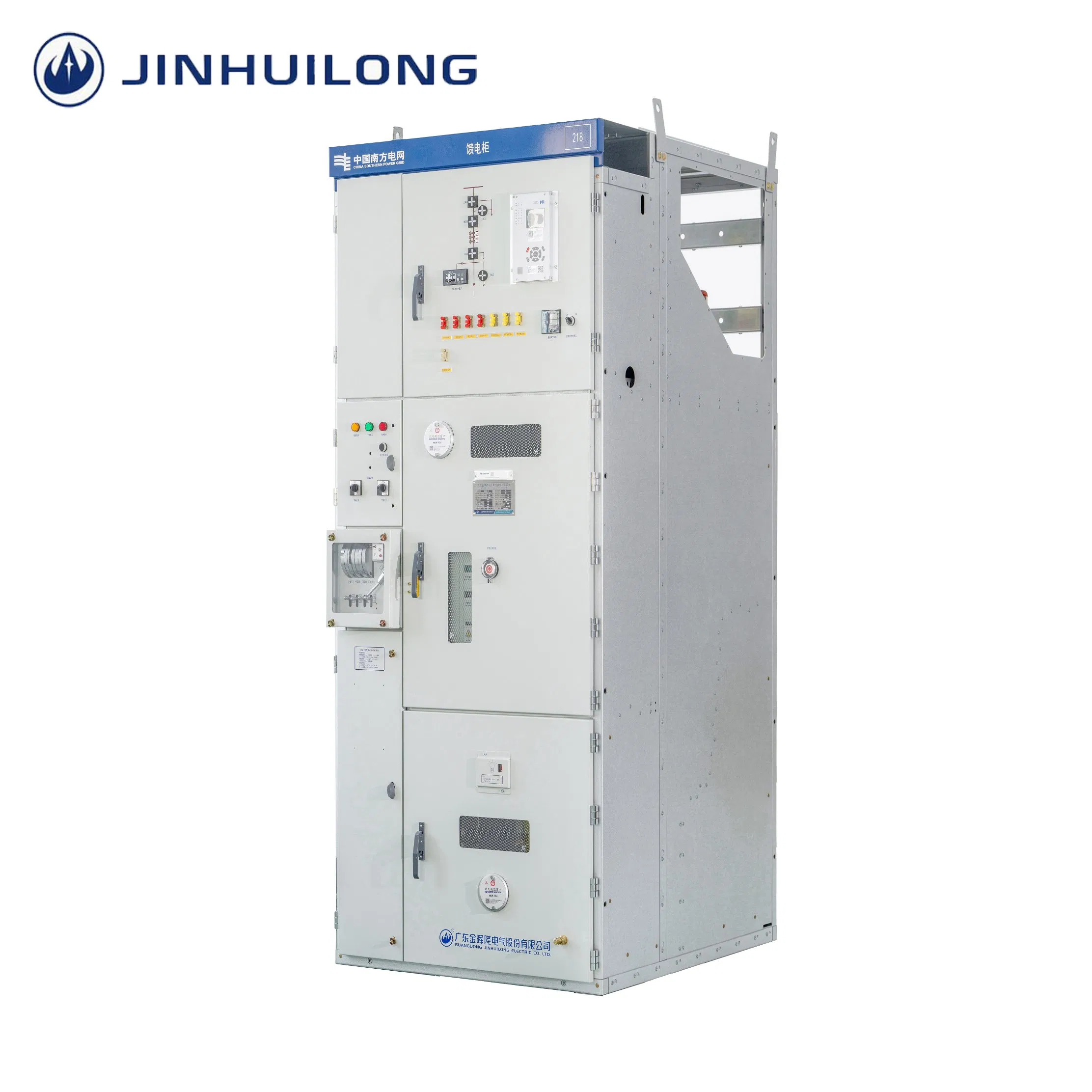

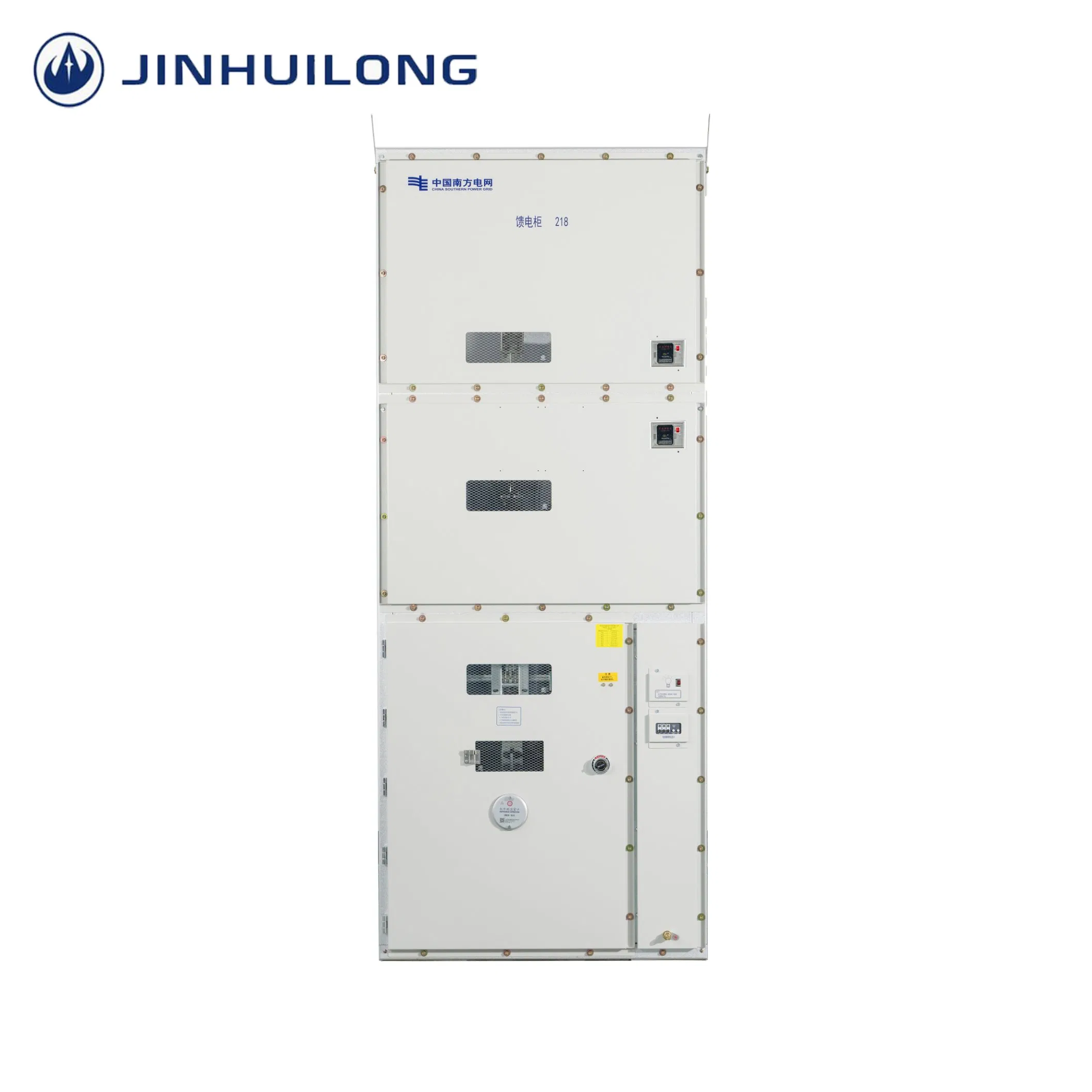

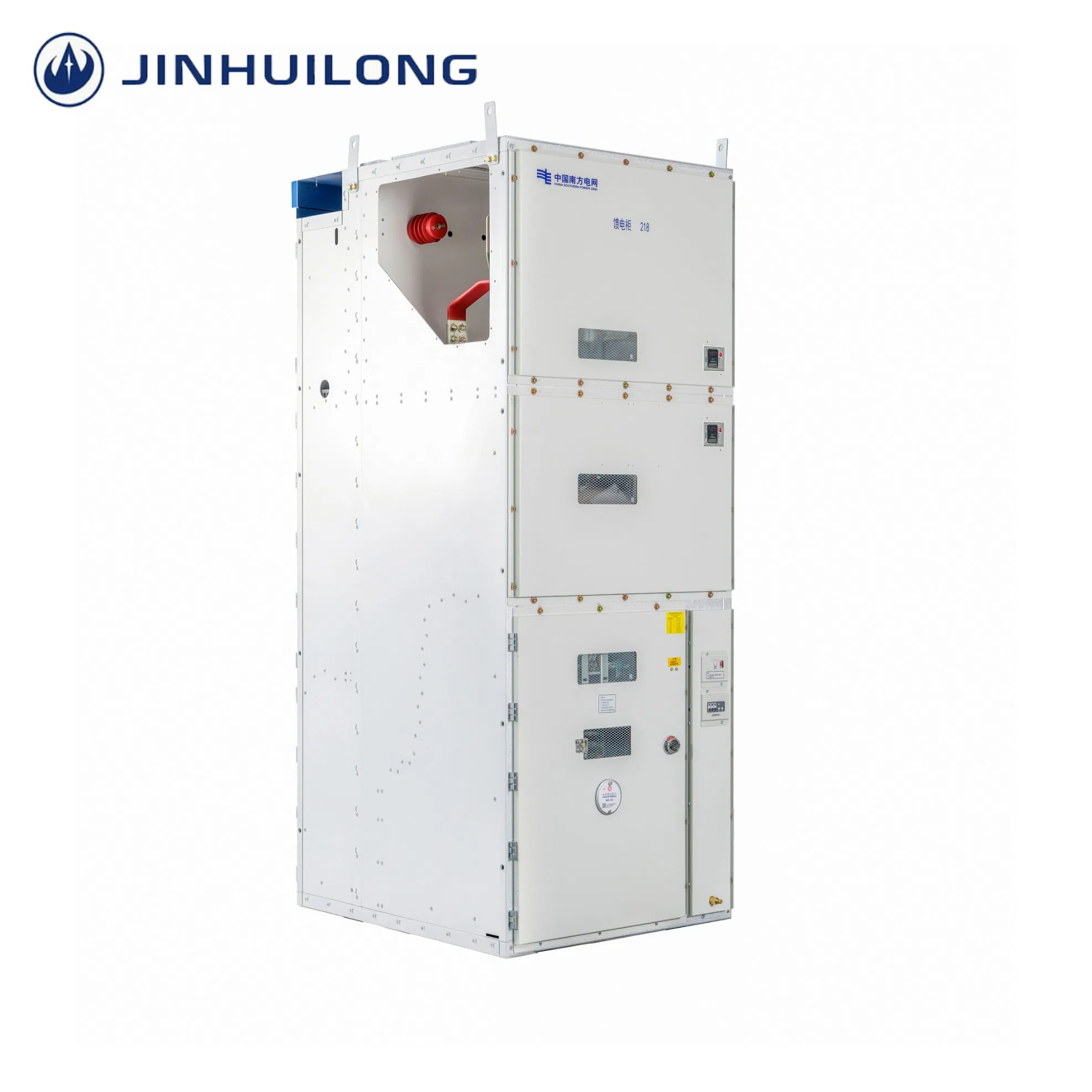

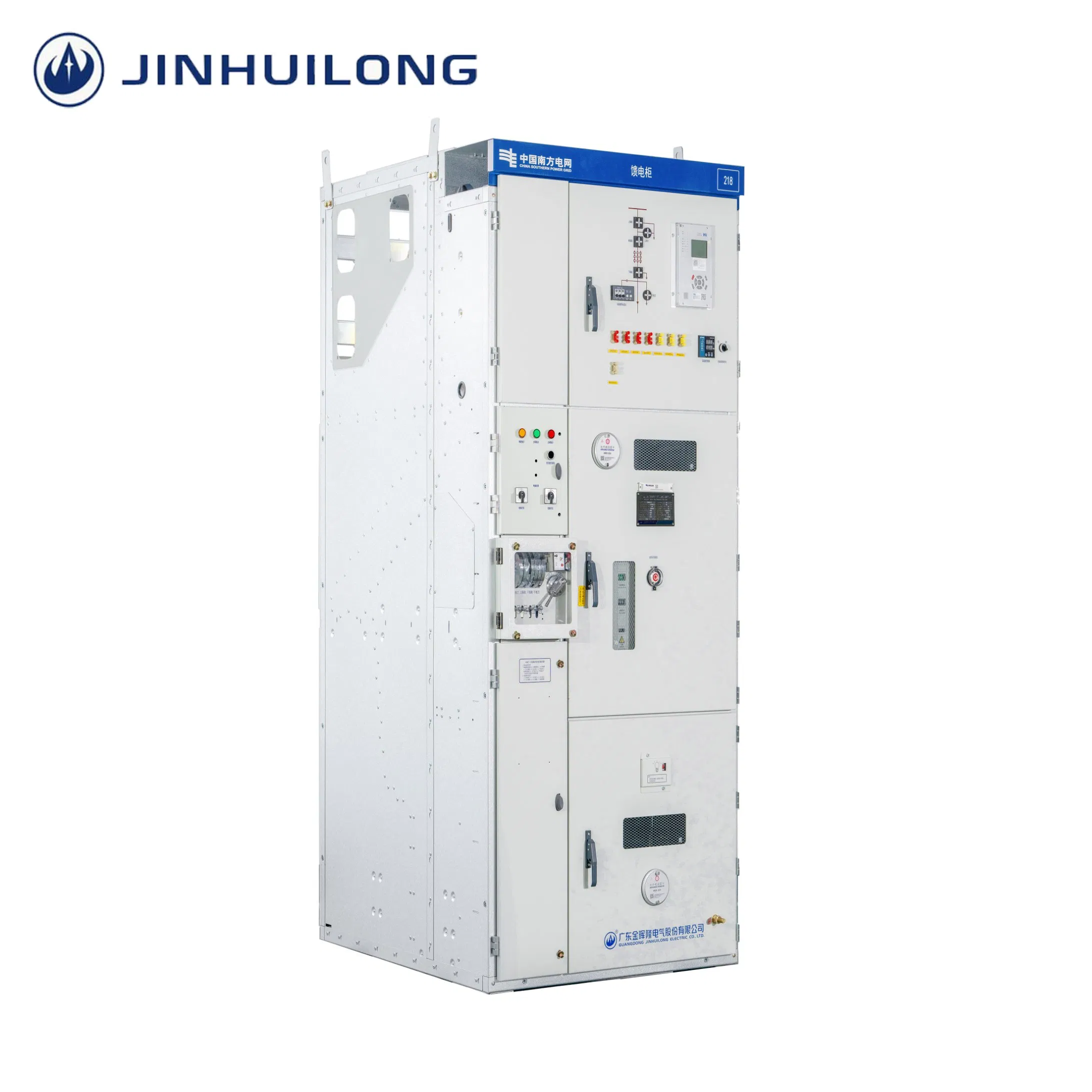

Equipped with complete five-prevention interlock functions, the XGN2-12 switch cabinet is a power distribution device featuring advanced technology, stable performance, reasonable structure, convenient operation, and high safety and reliability.
The cabinet adopts an assembled overall structure, fabricated by high-quality cold-rolled steel plates through multi-time bending assembly. It features high mechanical strength, excellent stability, no welding deformation, and elegant appearance. The surface is treated with advanced automatic electrostatic powder spraying technology, delivering superior corrosion resistance and anti-aging performance.
| No. | Item | Unit | Technical Parameters |
|---|---|---|---|
| 1 | Rated Voltage | kV | 12 |
| 2 | Rated Current | A | 1250 / 1600 / 2000 / 2500 / 3150 / 4000 |
| 3 | Rated Frequency | Hz | 50 |
| 4 | 1-min Power Frequency Withstand Voltage | kV | 42 (Phase-to-earth) / 48 (Isolating break) |
| 5 | Lightning Impulse Withstand Voltage | kV | 75 (Phase-to-earth) / 85 (Isolating break) |
| 6 | Rated Short-Circuit Breaking Current | kA | 31.5 / 40 |
| 7 | Ingress Protection Rating | - | IP3X |
| 8 | Weight | kg | 700 |
