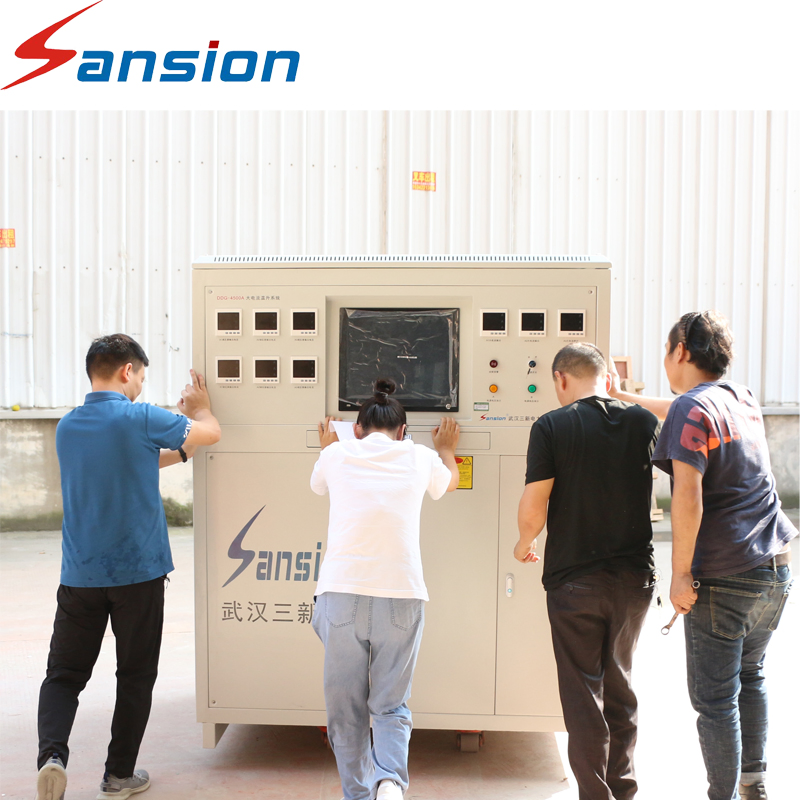

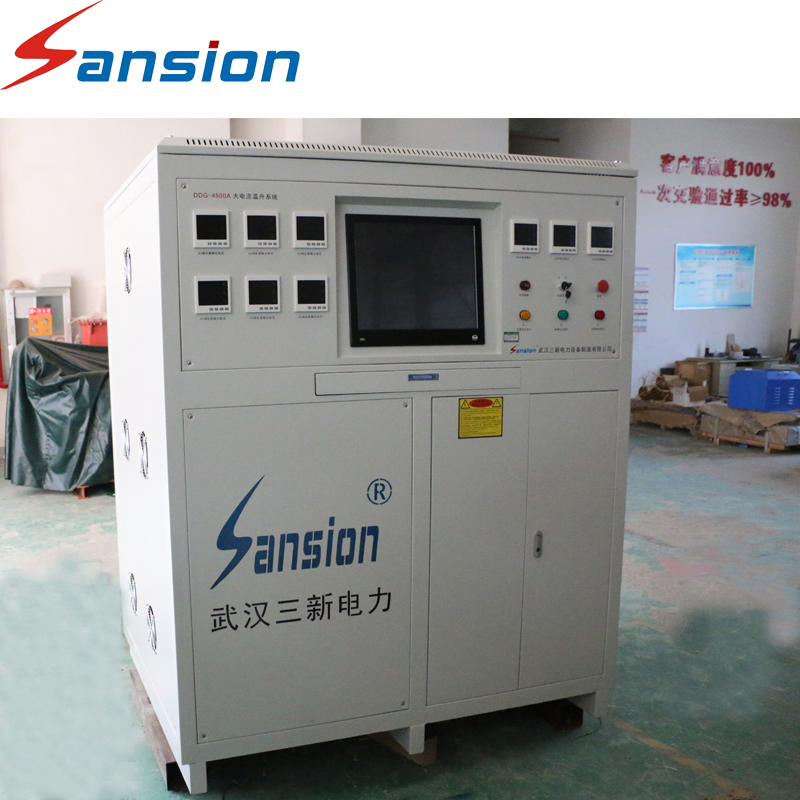

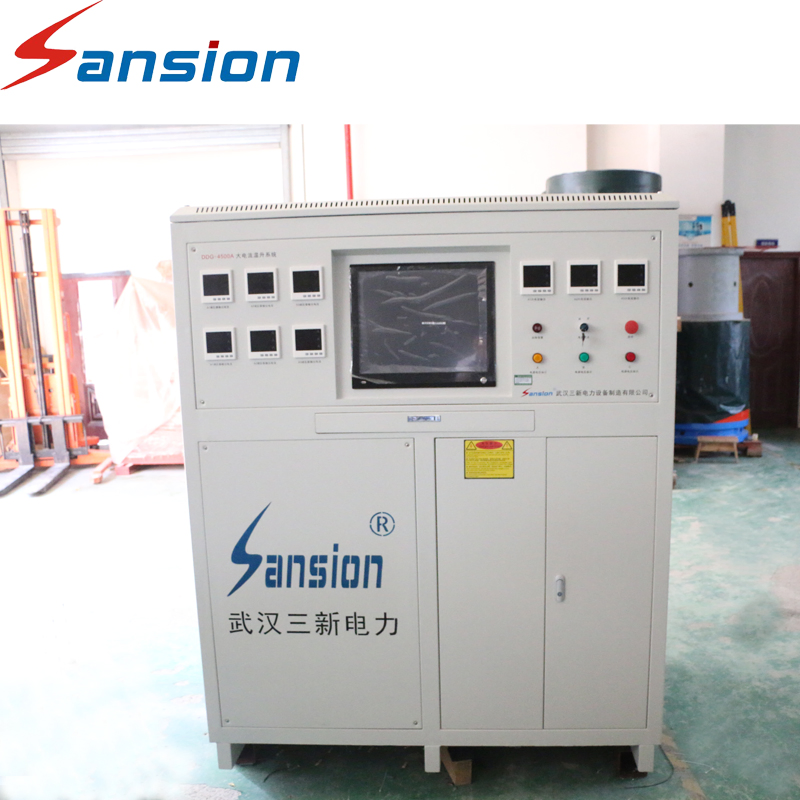

1000A Primary Current Injection Test System for Hv Switchgear Heat Run Tests

Customization:	Available
After-sales Service:	Onsite and Video Call Remote Guidance
Warranty:	2 Years Free Warranty Long Life Service

Basic Information

Model NO.

DDG

Type

Temperature Rise Test System

Max Diameter

900mm

Mass Scope

900kg

Accuracy Grade

1

Load Way

Electronic Load

Power Source

AC380V

Rated Current

1000A

Measurement

High Accuracy

Control System

Intelligent PLC

Product Description

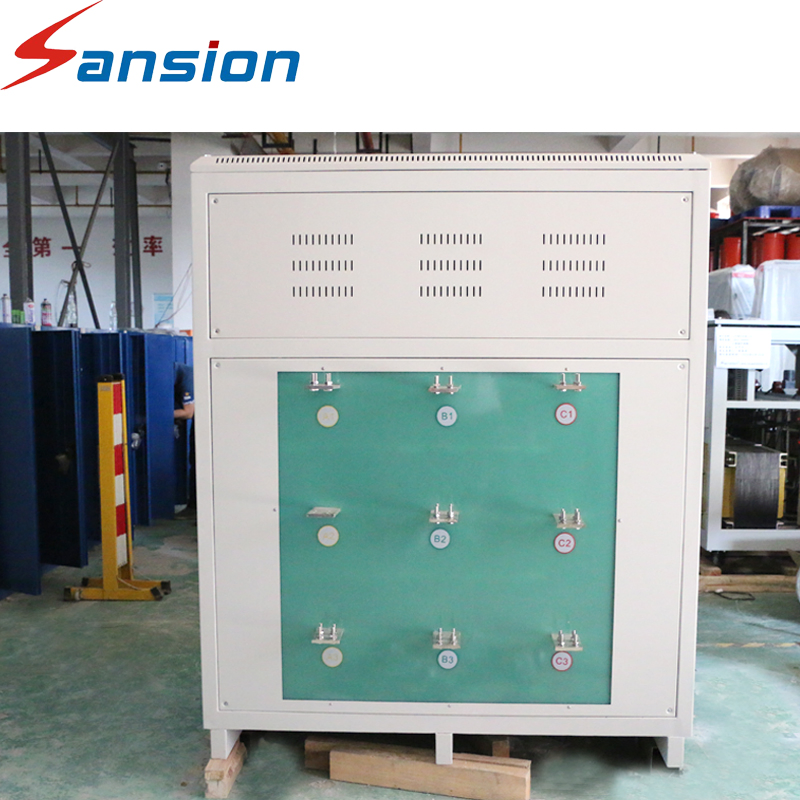

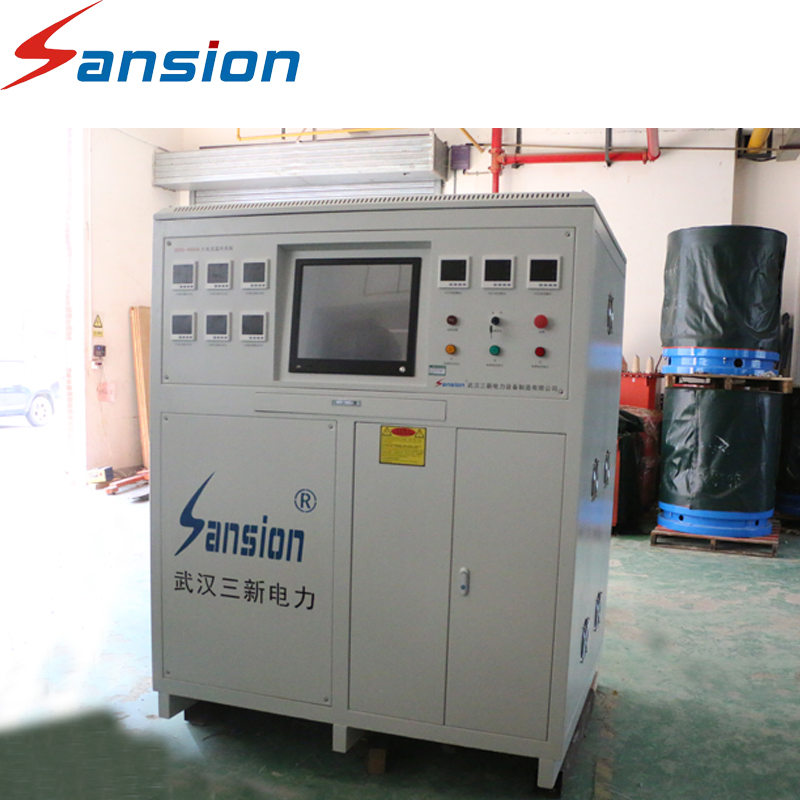

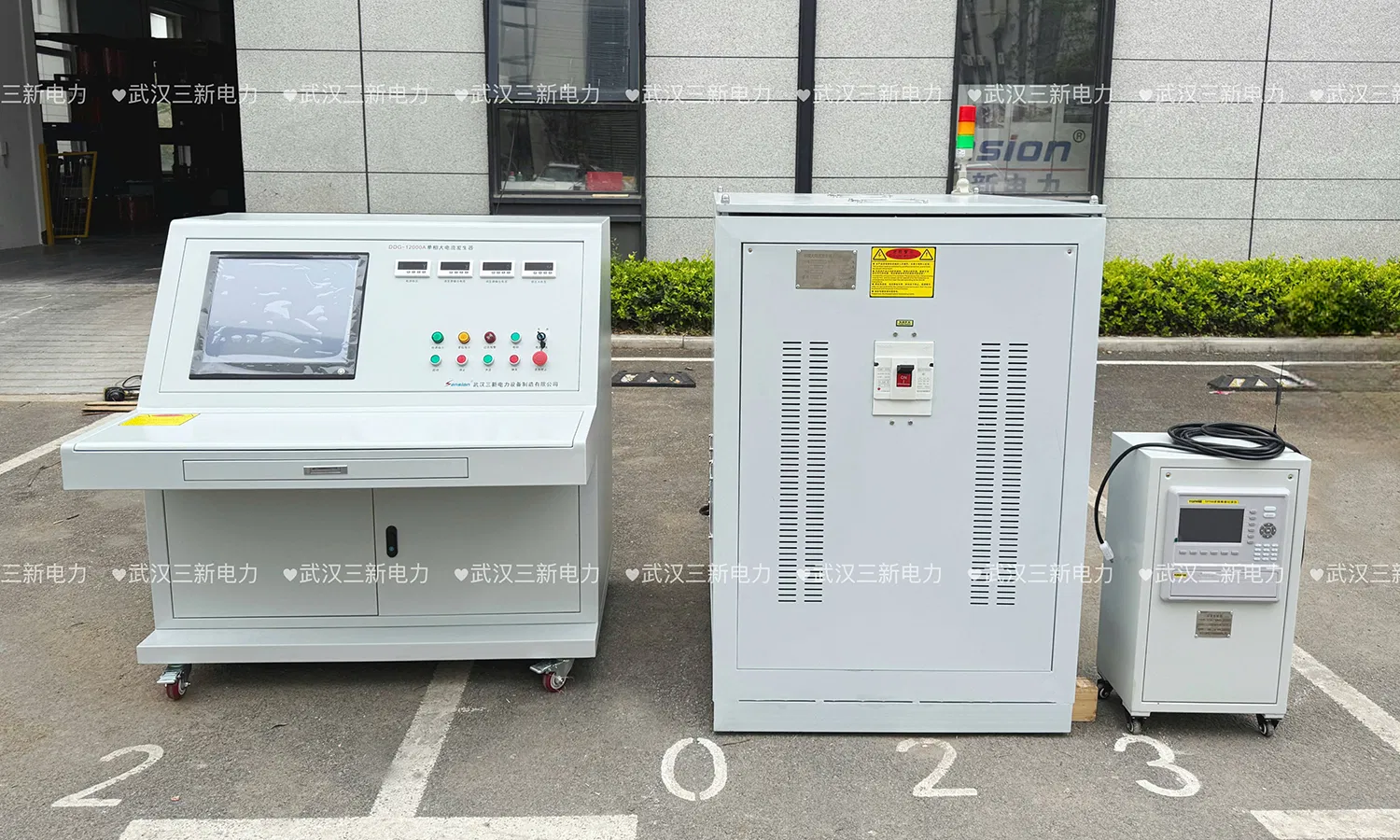

1000A Primary Current Injection Test System for HV Switchgear Heat Run Tests

The Primary Current Injection Test Set is ideal for current load and temperature rise tests on circuit breakers, switch gears, and CT/PT equipment. It is extensively utilized in power distribution and industrial mining sectors for reliable electrical equipment evaluation.

Key Features & Advantages

Intuitive Digital Display: Directly monitors current, voltage, and temperature factors for precise observation.
Smart Protection: Fully digitized overcurrent protection and timing settings for enhanced safety.
Automatic Tracking: Software automatically compensates for circuit impedance changes during heating.
Temperature Inspection: Supports 32-64 channel inspections with automatic curve generation.
Operation Modes: Flexible switching between manual and fully automatic test cycles.
Switch Protection: Measures action time and current for switchgear and thermal relays accurately.

Technical Specifications

Model	Rated Capacity (KVA)		Rated Input		Rated Output
Model	Regulator	Injector	Current (A)	Voltage (V)	Current (KA)	Voltage (V)
DDG-3/500	3	3	13.6	220	0.5	6
DDG-9/1500A	9	9	40.00	220	1.5	6
DDG-18/3000	18	18	45.00	400	3	6
DDG-24/4000	24	24	60.00	400	4	6
DDG-30/5000	30	30	75.00	400	5	6
DDG-90/15000	90	90	225.00	400	15	6

* Non-standard customization is available based on detailed technical requirements.

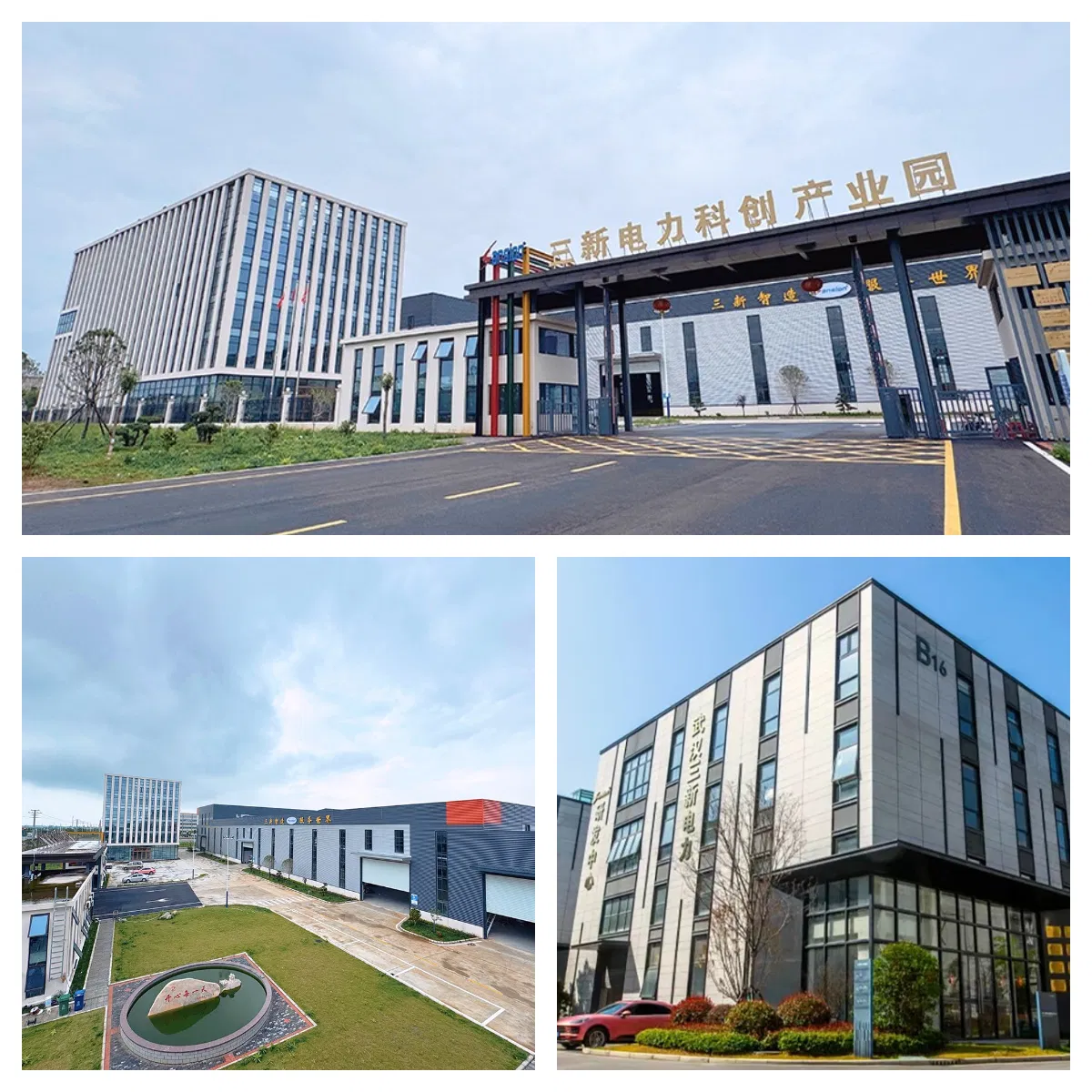

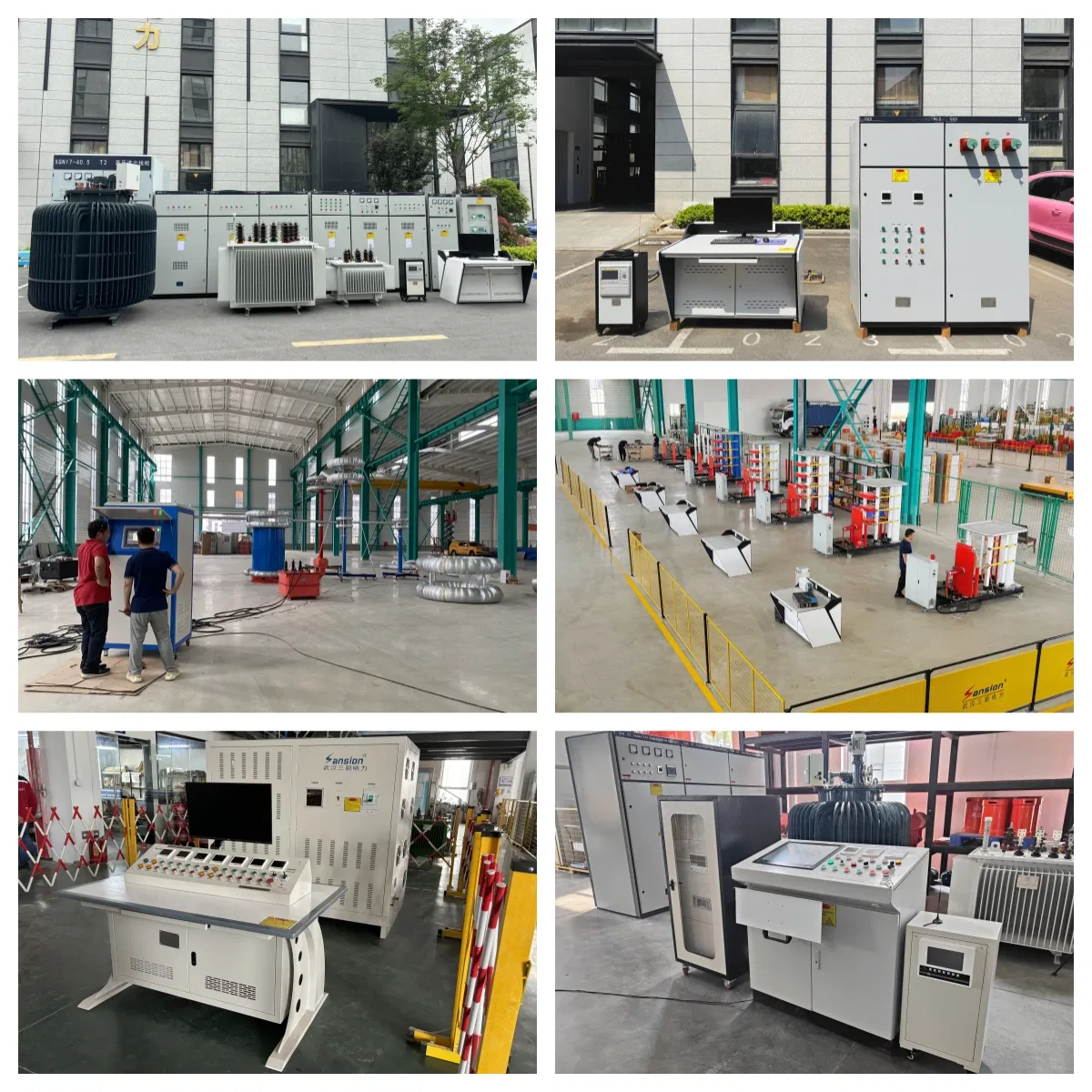

Workshop & Production

Certifications

Packing & Delivery

Global Customer Visits

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a specialized industrial and trade enterprise with our own manufacturing facility established in 2005. We possess 20 years of experience in R&D and production of power electrical testing equipment.

Can the equipment be customized for specific requirements?

Yes, we provide full customization services. We can tailor the technical specifications, including current output and channel numbers, according to your specific testing needs.

What is the typical delivery time for an order?

Standard orders are typically processed and delivered within 10 working days. Custom projects may require additional time depending on the complexity of the design.

How is the quality of the products guaranteed?

We utilize high-quality imported components and conduct three rigorous quality inspections before shipment. All goods are packed in professional, non-fumigation plywood cases for export.

What kind of after-sales support do you provide?

We offer a one-year warranty and free lifelong technical consulting. Support is provided through email, video calls, and on-site technical assistance if necessary.

Does the system support automatic report generation?

Yes, the intelligent software automatically records test data, generates temperature rise curves, and creates standard test reports for easy documentation.
