Motor AC Withstand Voltage Test Set Frequency-Tuned Resonant Test System

Customization:	Available
After-sales Service:	Onsite and Video Call Remote Guidance
Warranty:	2 Years Free Warranty Long Life Service

Basic Specifications

Model NO.

SXBP

Max Diameter

900mm

Mass Scope

<900kg

Type

Strength Testing Machine

Max Capacity

<1000KN

Accuracy Grade

0.5

Load Way

Electronic Load

Display

LCD Display

Control

Computer Control

Power Source

AC380V

HS Code

9030339000

Capacity

100 Units/Month

Product Description

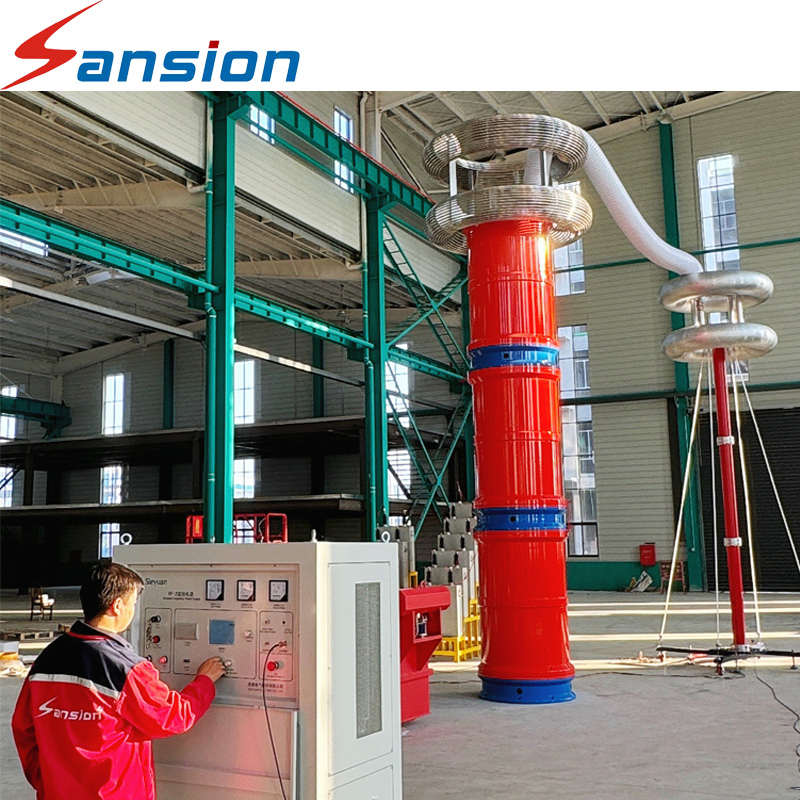

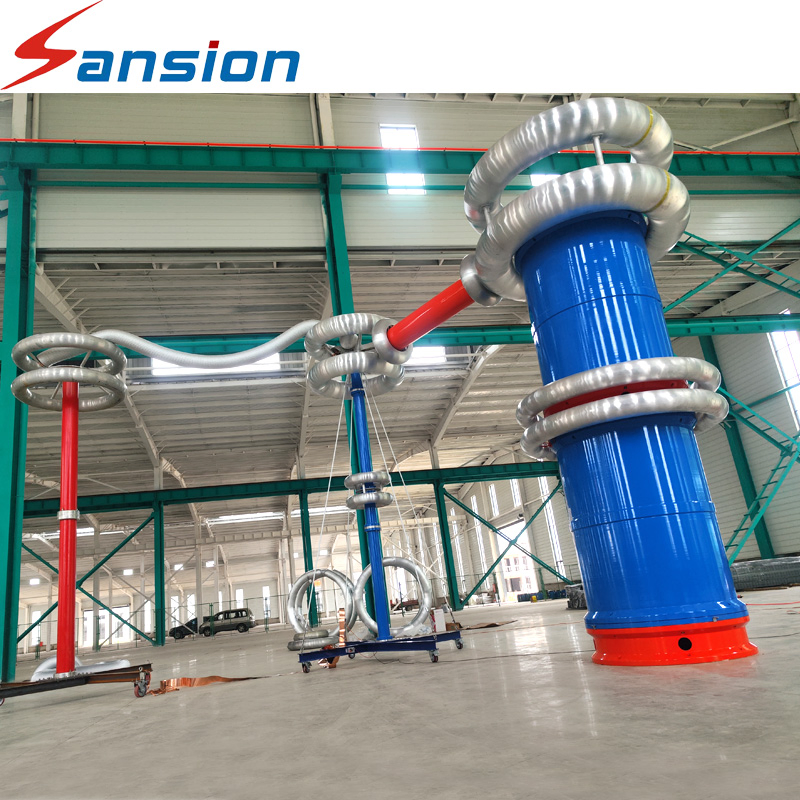

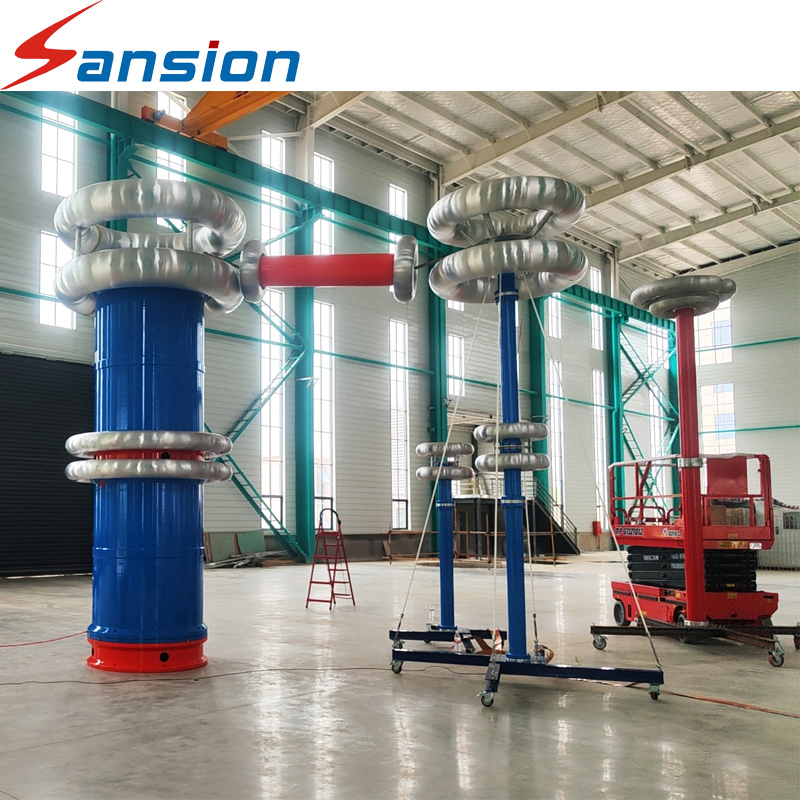

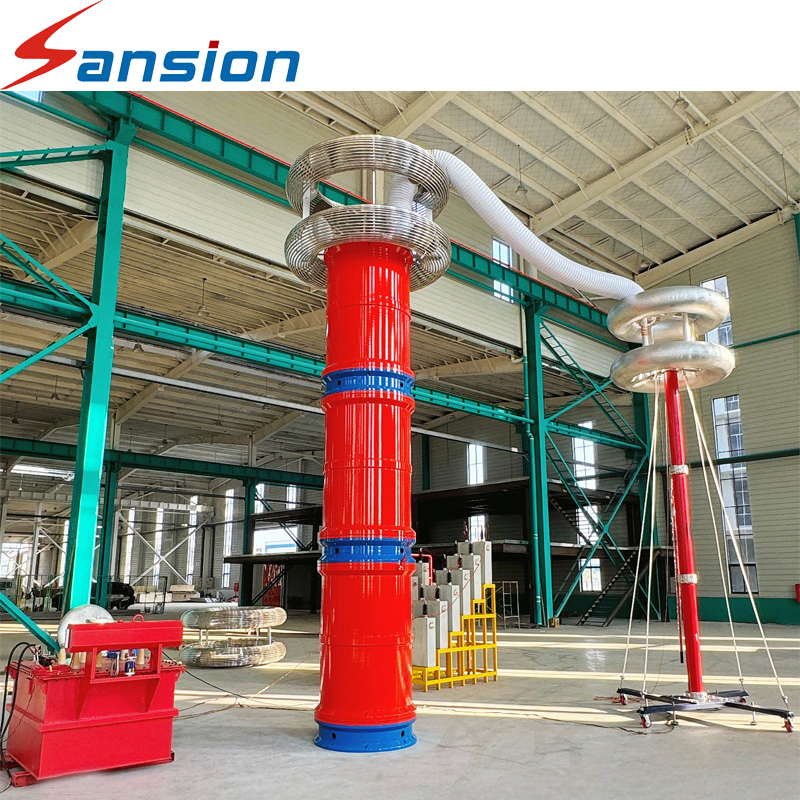

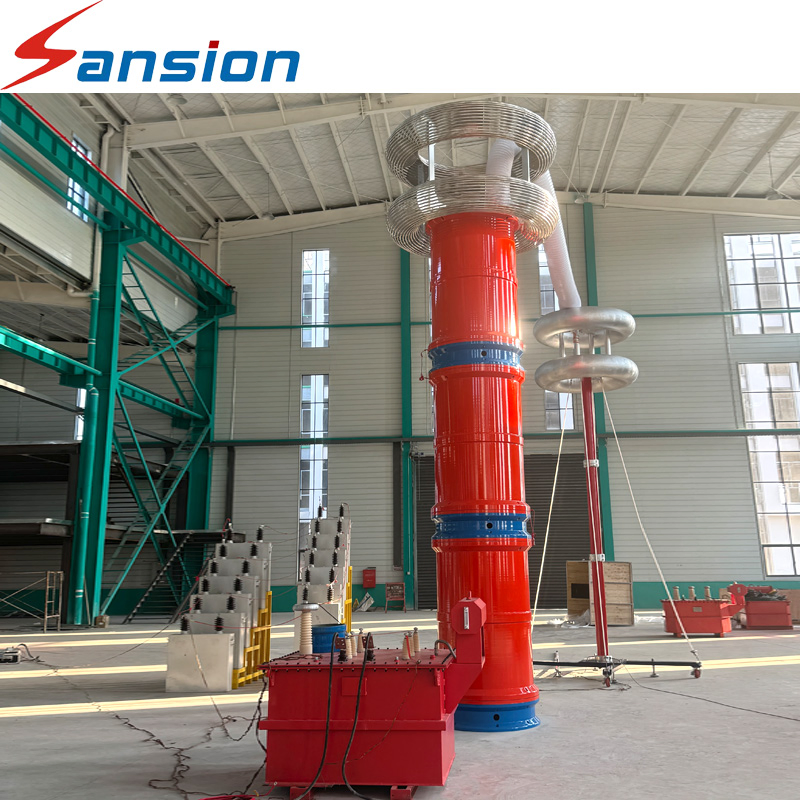

Motor AC Withstand Voltage Test Set Frequency-Tuned Resonant Test System

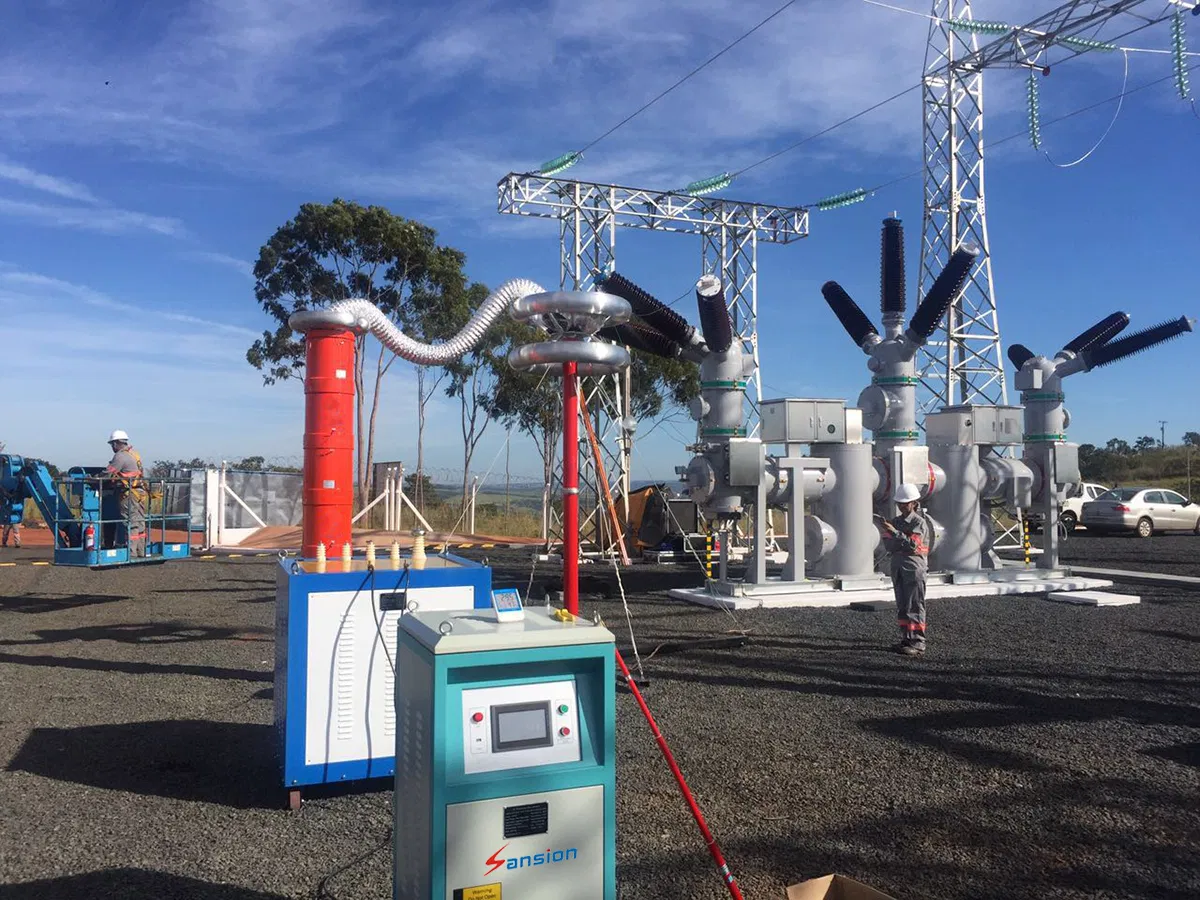

General Information: The Series Resonant Test Set (RTS) is specially designed for AC withstand tests for electric equipment of substations at 10kV~500kV or below.

Core Features

Small size, portable for on-site operation.
Real-time screen display for test data, status, and operation steps.
Small temperature rise at rated load with dry-type epoxy cast for high insulation.
Suitable for 220V or 380V single-phase power sources.
Multiple reactor types for multipurpose applications.
Integrated over-current, over-voltage, IPM, and discharge protection.
Printable test results for documentation.

Applications

Transformers Cables GIS Systems Insulators CT/PT Generators

Common Configuration

Model	Test Object	AC Power Source	Reactor	Divider
SXBP-27/54/108-108	35KV Power Transformer / 10KV Cable 2000m	10KW 1 unit	27KV/1A (4 Units)	120KV
SXBP-54/108/216-216	110KV GIS / 35KV Cable 1500m	15KW 1 unit	65KV/2A (4 Units)	300KV
SXBP-65/130/260-520	110KV (300mm2) cable 800m / GIS	30KW 1 Unit	45KV/1A (6 Units)	200KV

Note: Voltage configurations can be customized by adding reactors or dividers to meet specific test requirements.

Company Profile

Established in 2005, the company features technocrats with over 10 years of R&D experience in manufacturing and marketing power electrical testing products. These solutions are widely applied in power electrics, railroads, energy conservation, petrochemicals, and aerospace.

Customer Interaction & Delivery

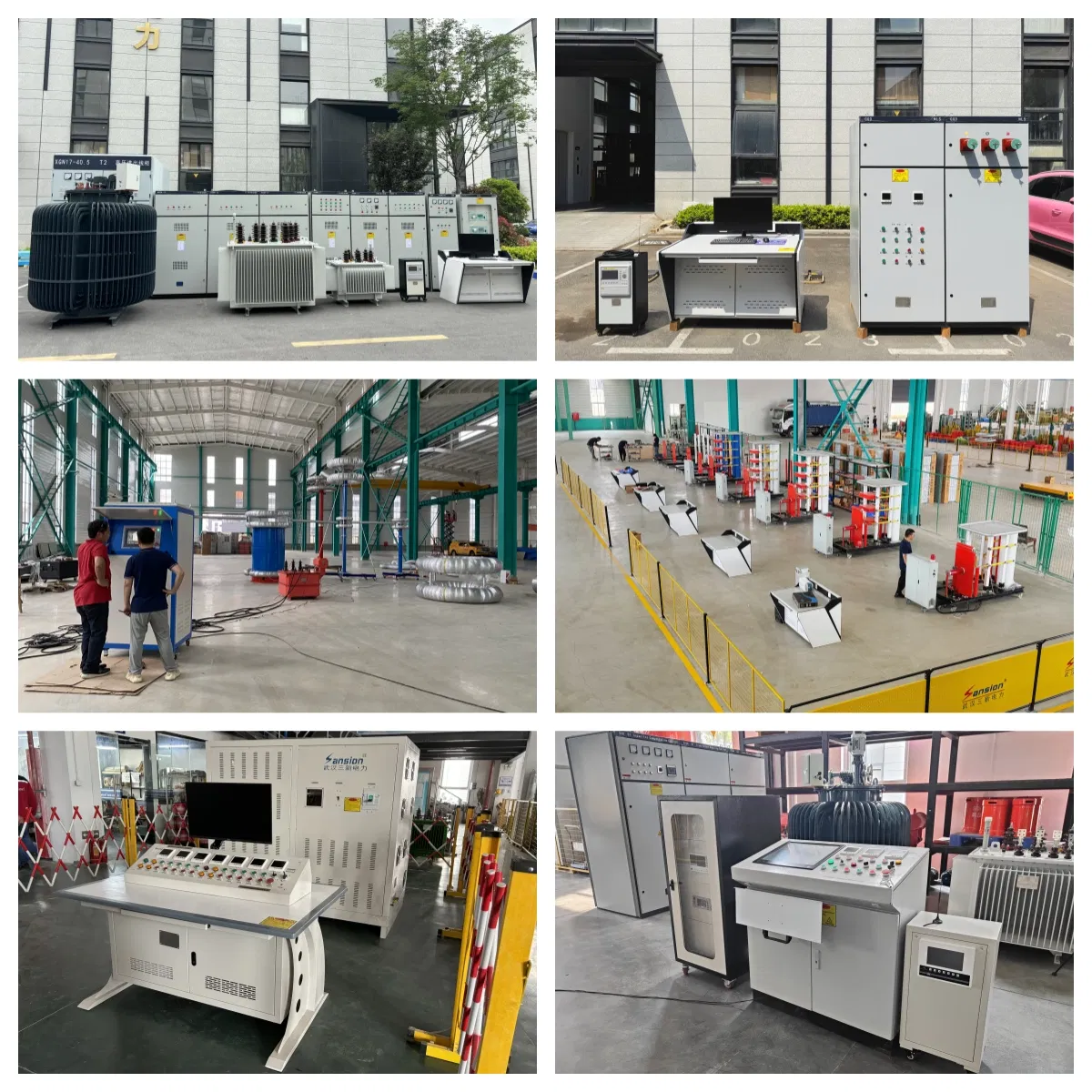

The facility includes R&D departments, HV workshops, and a quality control center. All products strictly conform to international IEC standards. Logistics are handled efficiently with options for air or ocean shipping.

Frequently Asked Questions

Are you a manufacturer or a sales company?

We are an industrial and trade enterprise with our own factory, founded in 2005. We have 20 years of production experience with dedicated R&D centers and reliable production lines.

Can the equipment be customized?

Yes, goods can be made-to-order based on specific customer requirements using the latest technology. Standard delivery is typically within 10 working days.

How is the quality guaranteed?

We use high-quality imported components. Each product undergoes three stages of quality inspection before being packed in non-fumigation wooden boxes for export.

What are the after-sales service terms?

We offer a one-year warranty and free consulting services. Support is provided via email, video calls, or on-site technical visits to ensure timely problem resolution.

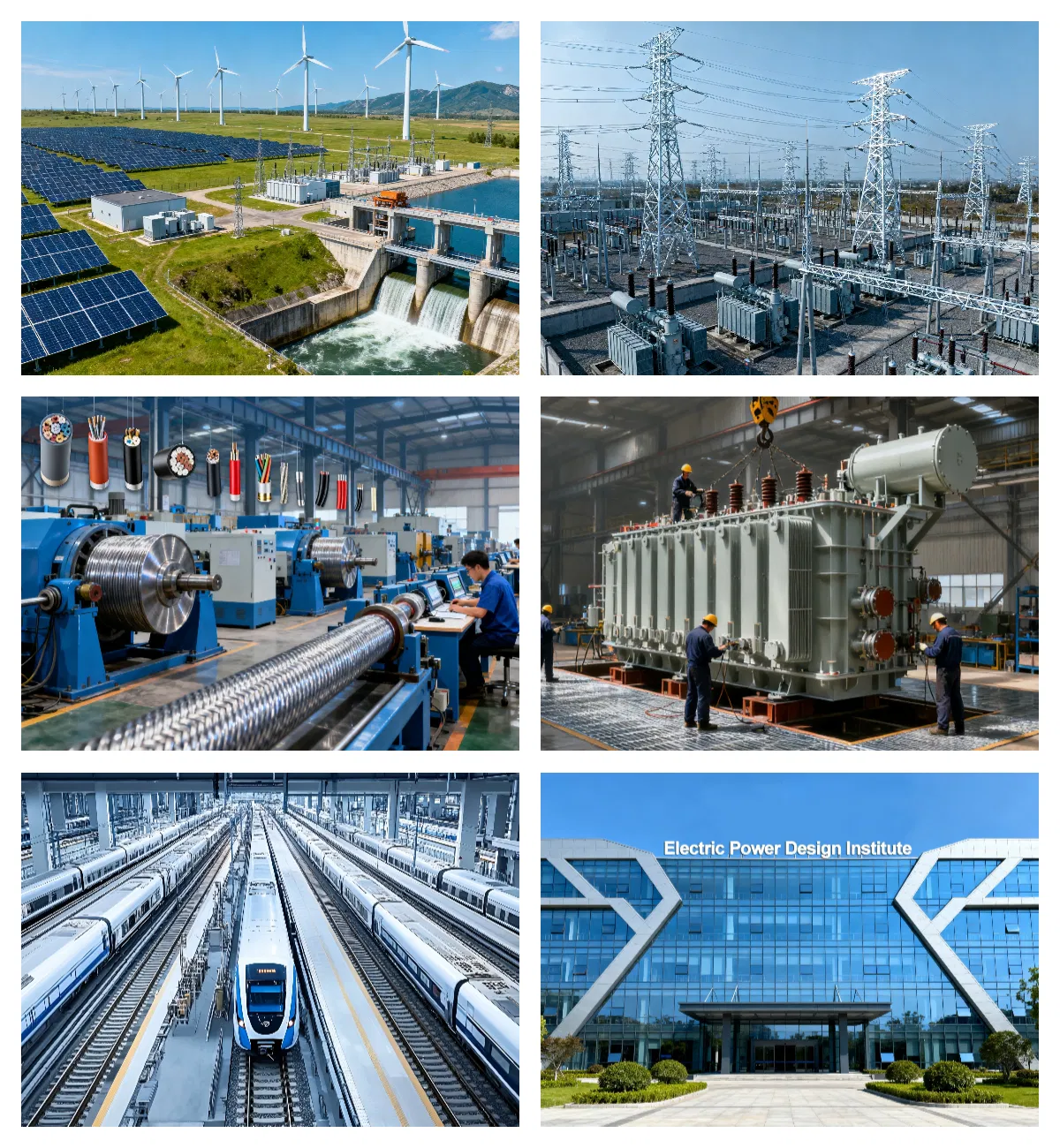

In which fields can your products be applied?

Our products are used in Power, Railway, Energy Conservation, Water Conservancy, Petrochemicals, and Aerospace. They are designed to meet high-voltage testing standards globally.

What is your shipping experience?

We have successfully exported products to the United States, France, Brazil, Australia, Russia, Saudi Arabia, Indonesia, and many other regions worldwide.
