Product Description

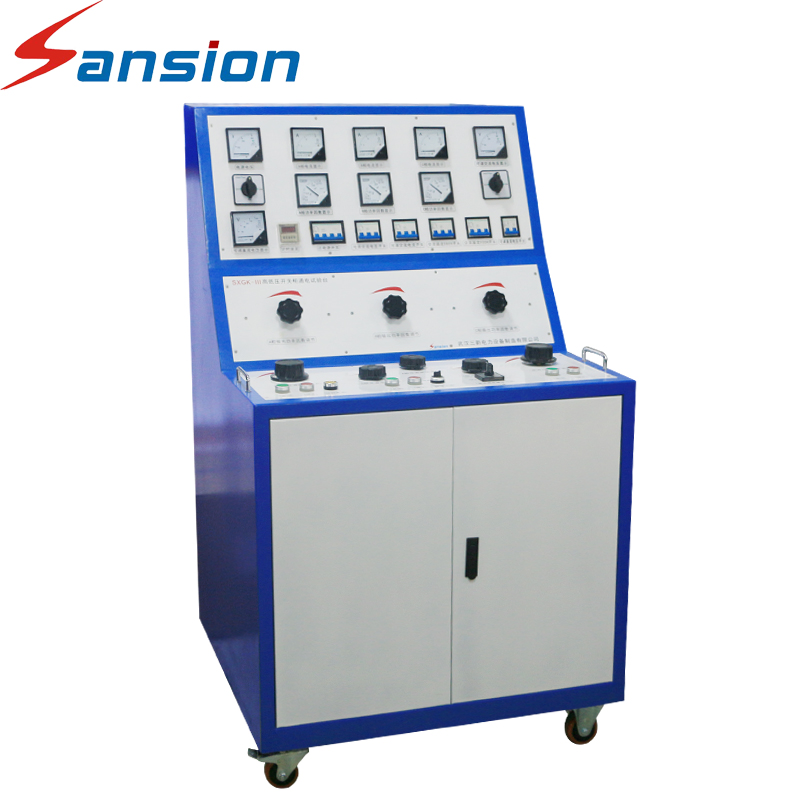

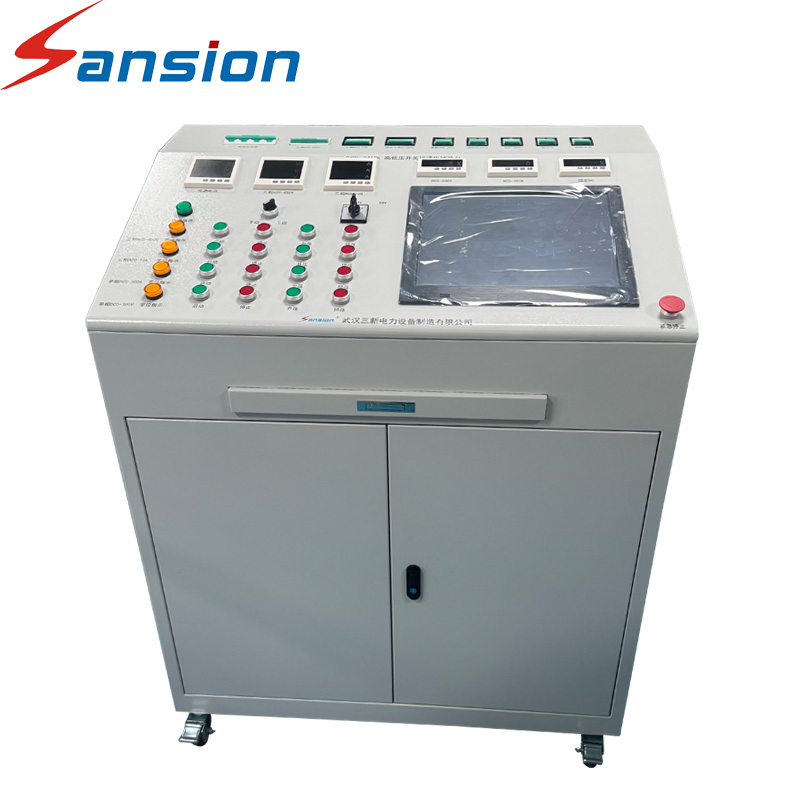

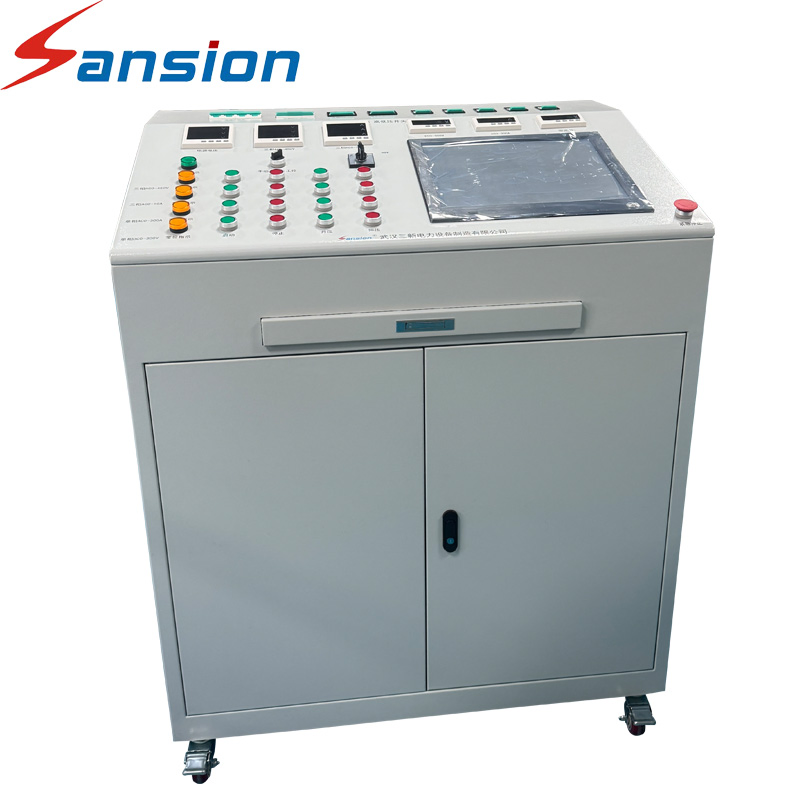

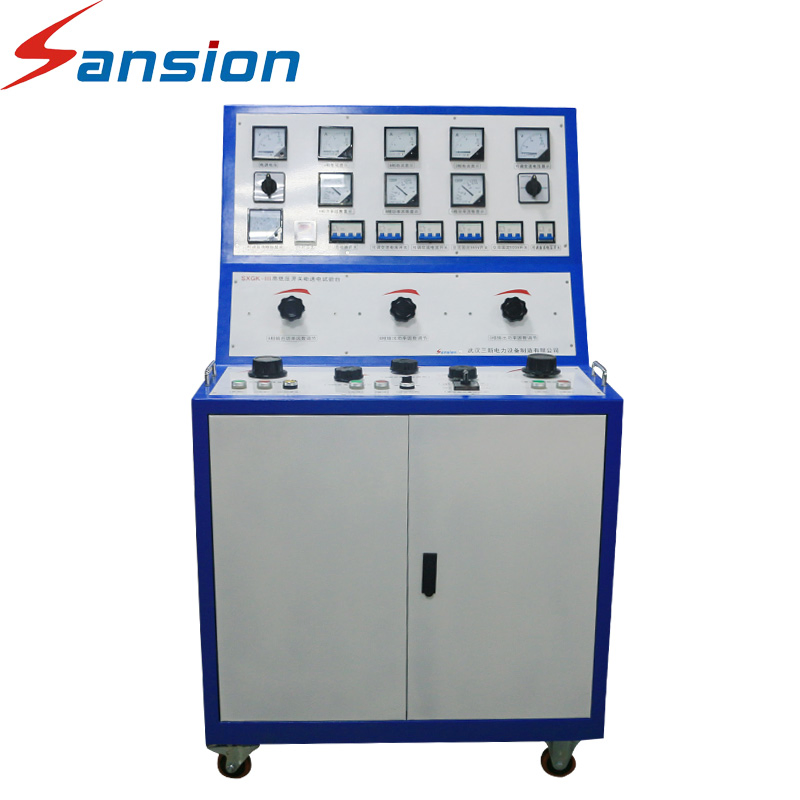

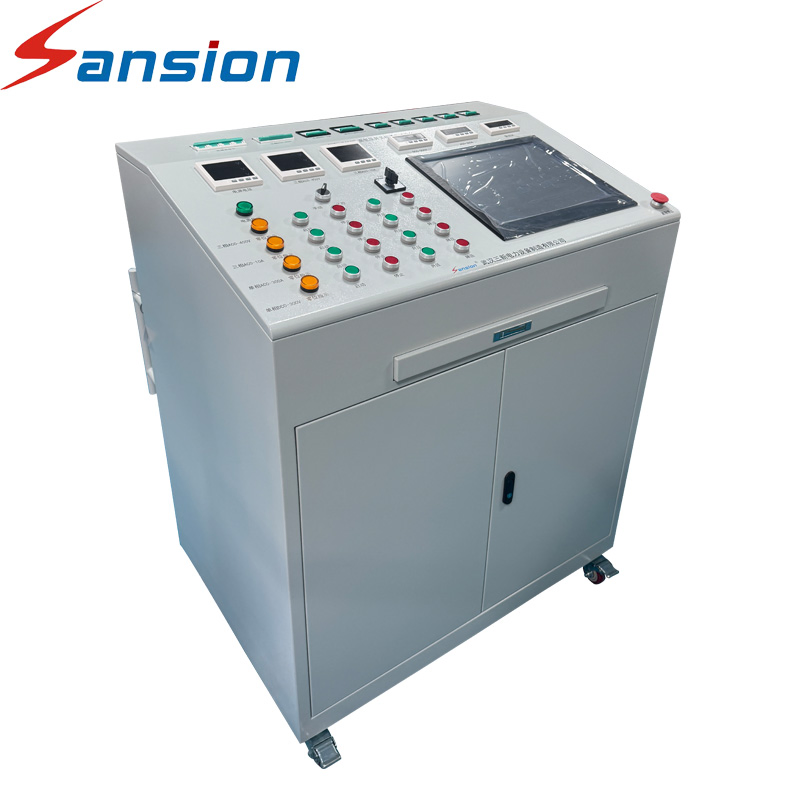

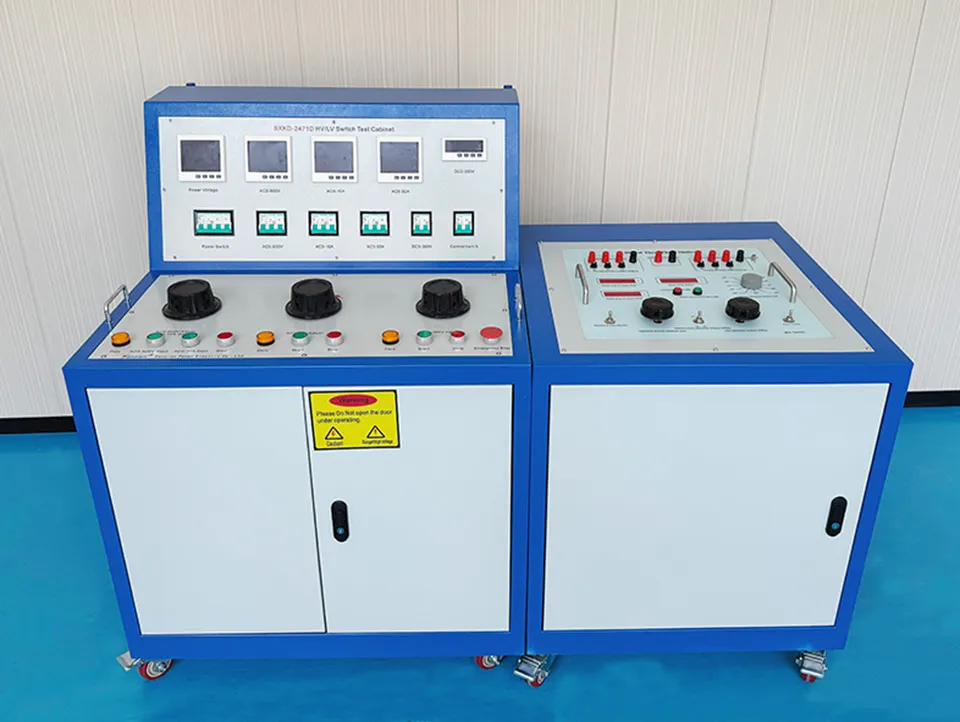

High and Low Voltage Switchgear Comprehensive Test System
The HV/LV Switch Cabinet Test Bench is engineered for measuring circuit resistance, insulation resistance, and conducting AC withstand voltage tests. It is essential for testing the operating characteristics of circuit breakers and conducting various power-on tests on high and low voltage switchgear before factory dispatch.
Key Features
📊
Direct Digital Reading: High-precision digital meters display current, voltage, and power factor values instantly.
🛡️
Full Protection: Every circuit is equipped with independent air switch protection for maximum safety.
🚀
Portable Design: Compact size and light weight make it easy to move across different testing environments.
Test Project Capabilities
- Circuit Resistance Measurement: 0~100AV/200A
- Insulation Resistance Testing: 500~2500V
- Voltage Withstand Test: 0.4kV / 10kV / 35kV
- Short-time Withstand Current Capability (0~2000A)
- Relay and Contactor Performance Testing
- Circuit Breaker Opening/Closing Time and Speed Characteristics
Frequently Asked Questions
Q1: Is the system suitable for both high and low voltage testing?
Yes, the SXGK series is specifically designed as a comprehensive test bench for both high and low voltage switch cabinets, covering insulation, resistance, and withstand voltage.
Q2: Can the output voltage and current be customized?
The system features adjustable AC/DC operating voltages and current groups, allowing for flexible testing according to specific project requirements.
Q3: What is the typical lead time for an order?
Production is typically completed within 10 working days, ensuring the latest technology and components are integrated into your specific unit.
Q4: How is product quality ensured during manufacturing?
Quality is managed through rigorous triple-inspection processes using high-grade imported components, strictly conforming to international IEC and state standards.
Q5: What kind of after-sales support is available?
We provide a one-year warranty along with free technical consulting via video calls and email to resolve any operational or maintenance issues promptly.
Q6: How are the products packed for international shipping?
All units are packed in export-standard, non-fumigation plywood cases to ensure safety and compliance during global transit.
Zago Electric
