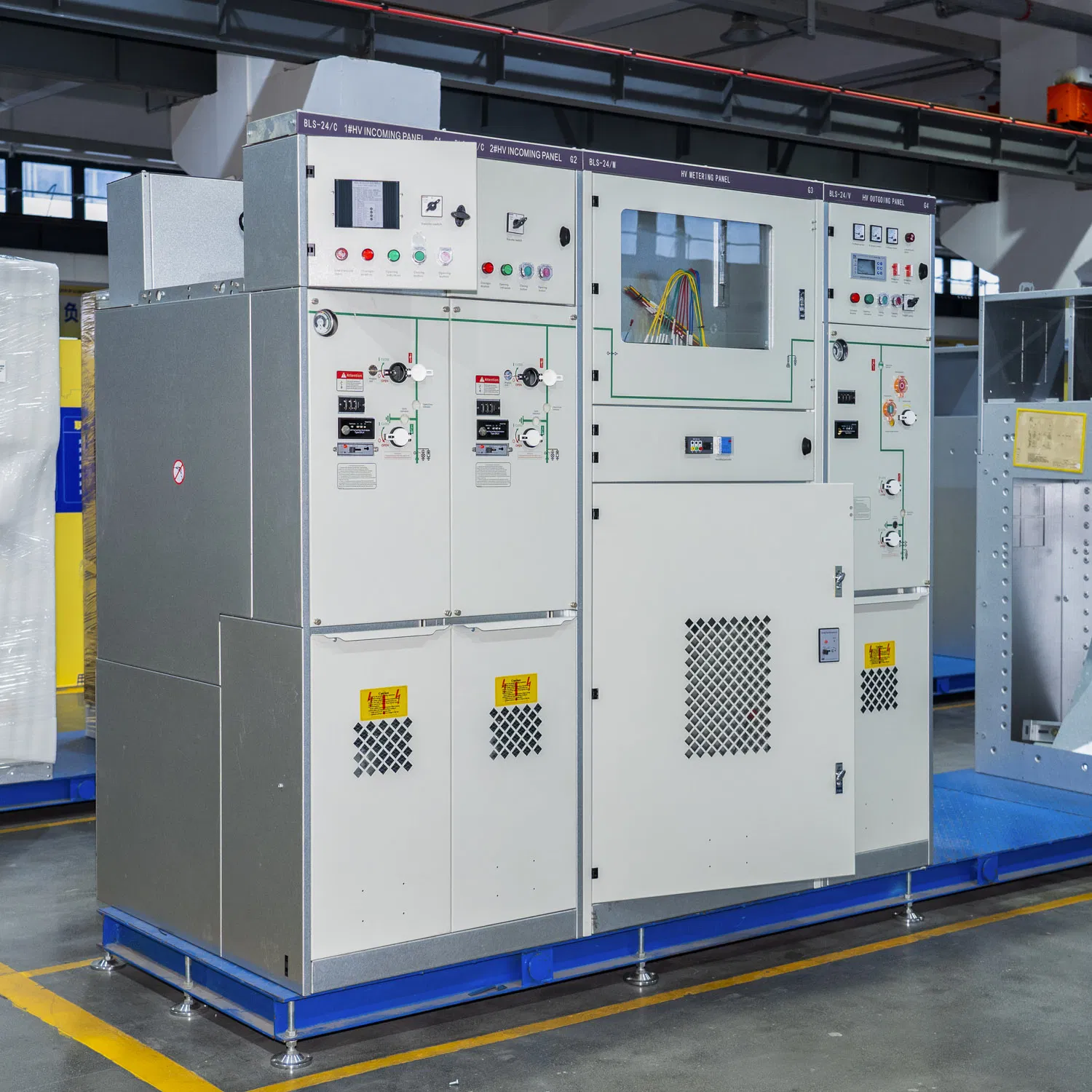

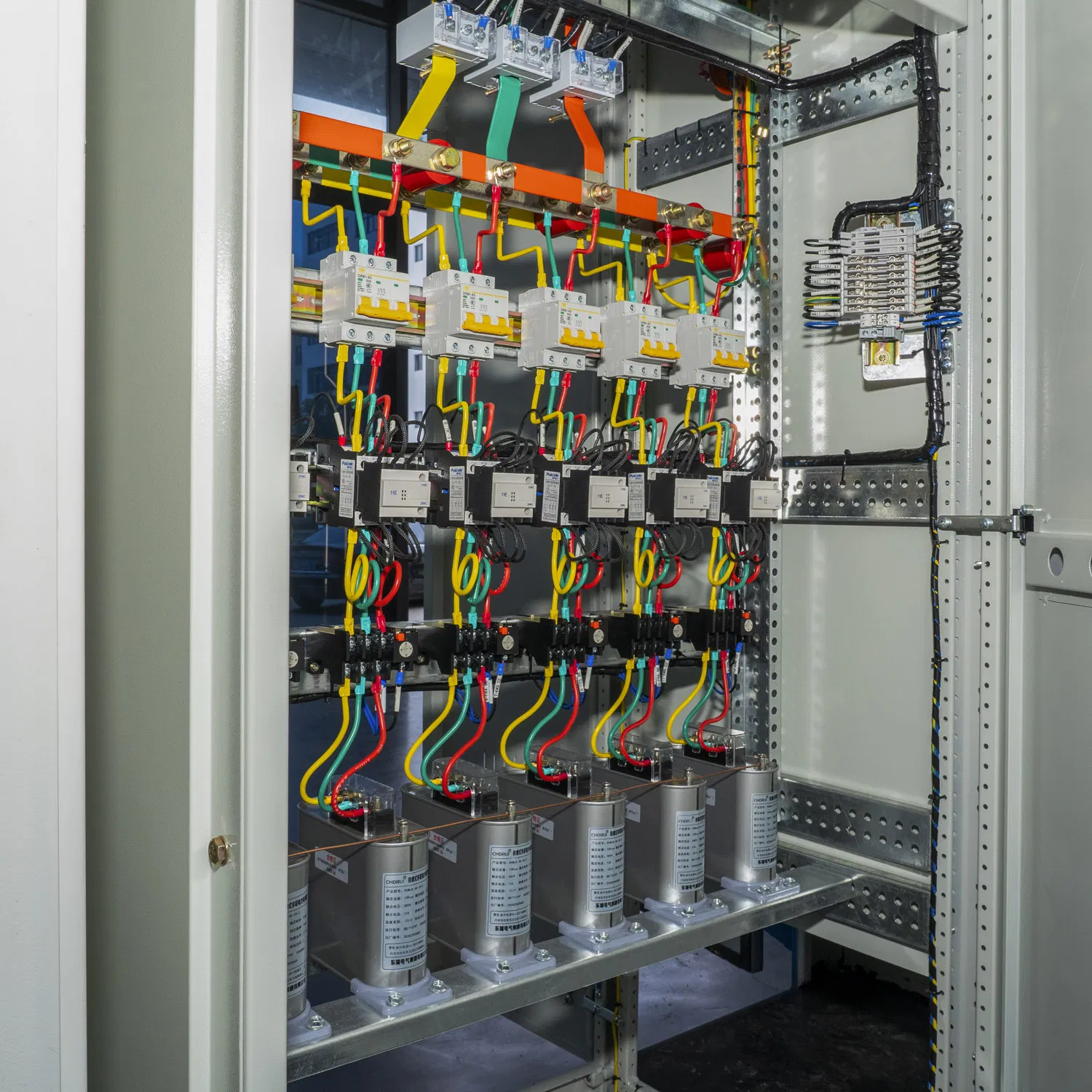

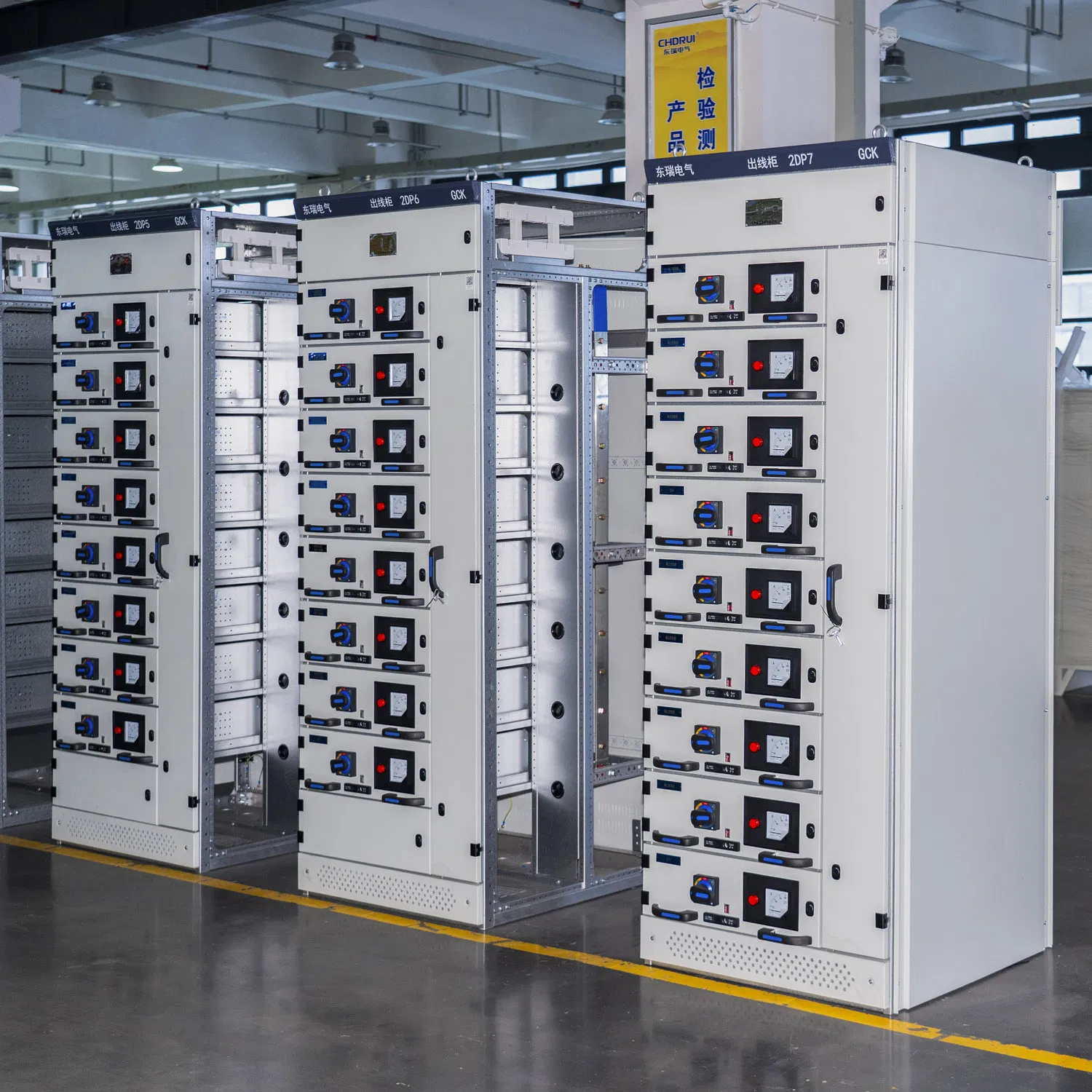

Complete Switchgear Systems with Multi-Scenario Industrial Applications and Internal Component Configurations

Customization:	Available
Type:	Distribution Metering Box
Structure:	Fixed Board

i

Overview & Basic Info

Model NO.

SCQ-1500

Certification

ISO9001:2000, VDE, CCC

Form

Partly-welded Type

Operation Voltage

High Voltage

Shell Material

Stainless Steel

Shell Protection Grade

IP56

Rated Voltage

33kv

Rated Current

630A

Rated Capacity

50-2500kVA

Frequency

50Hz

Transport Package

Wooden

Origin

China

✓

Product Description

⚙

Technical Specification

Parameter	Specification
Rated operational voltage	690V AC
Rated insulation voltage	1000V AC
Degree of protection	IP54 (indoor)/ IP65 (customized)
Short-time withstand current	50kA for 1 second
Standards Compliance	IEC 61439-1/2, GB7251.1
Rated Capacity	Under 2500kVA

🏢

Company Profile

Established in 1993, the company has matured over three decades into a modern high-tech enterprise integrating R&D, production, and sales. Building upon a solid foundation in electrical manufacturing, our product lines have continuously evolved.

We continue to manufacture traditional flagship products, such as AC contactors and miniature circuit breakers. Our portfolio of over 300 products across seven major series is sold successfully worldwide. Guided by the principle of "Quality First, Customers First, Reputation First," the company has obtained ISO 9001 Quality Management System certification and international approvals including CE, CB, UL, ETL, and CCC. Adhering to our philosophy of "Premium Service, Integrity in Operation, and Pioneering Innovation," we sincerely welcome partners from across the globe to collaborate.

?

Frequently Asked Questions

Q1: What standards does your low voltage switchgear comply with?

Our switchgear is designed and manufactured in full compliance with the international IEC 61439 series of standards (specifically IEC 61439-1 & -2). We also hold complete Type Test Certification (TTA) from independent, accredited laboratories.

Q2: What is the meaning of "Form 4B" separation?

Form 4B is a classification per IEC 61439 that specifies the highest degree of internal separation. It ensures complete isolation between busbars, functional units, and outgoing terminal compartments, enhancing safety and allowing for safer maintenance.

Q3: What is the advantage of a withdrawable circuit breaker design?

A withdrawable design allows the circuit breaker to be disconnected, isolated, and moved to a "test" or "withdrawn" position without de-energizing the entire panel, significantly minimizing downtime for maintenance.

Q4: What is the short-circuit withstand rating (Icw) of your panels?

Our standard panels are rated for a short-time withstand current (Icw) of 50kA for 1 second. Higher ratings can be engineered for specific projects depending on requirements.

Q5: What is the typical delivery lead time for a custom switchgear project?

For standard configurations, the lead time is typically 4-6 weeks. For fully customized projects involving complex engineering, the lead time can range from 8 to 12 weeks.

Q6: What certifications do your electrical products hold?

Our company holds ISO 9001 Quality Management System certification and international product approvals including CE, CB, UL, ETL, and CCC to ensure global quality standards.
