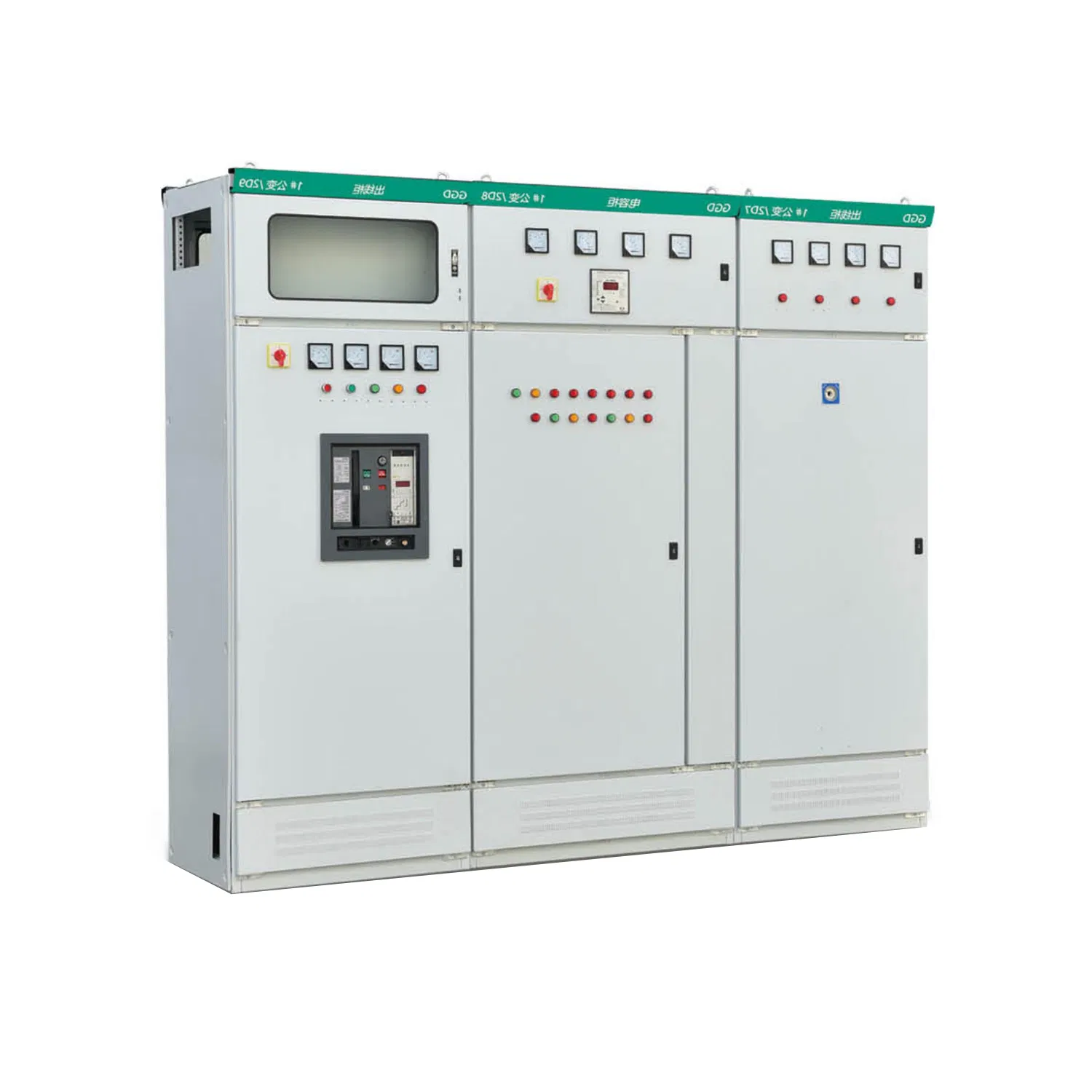

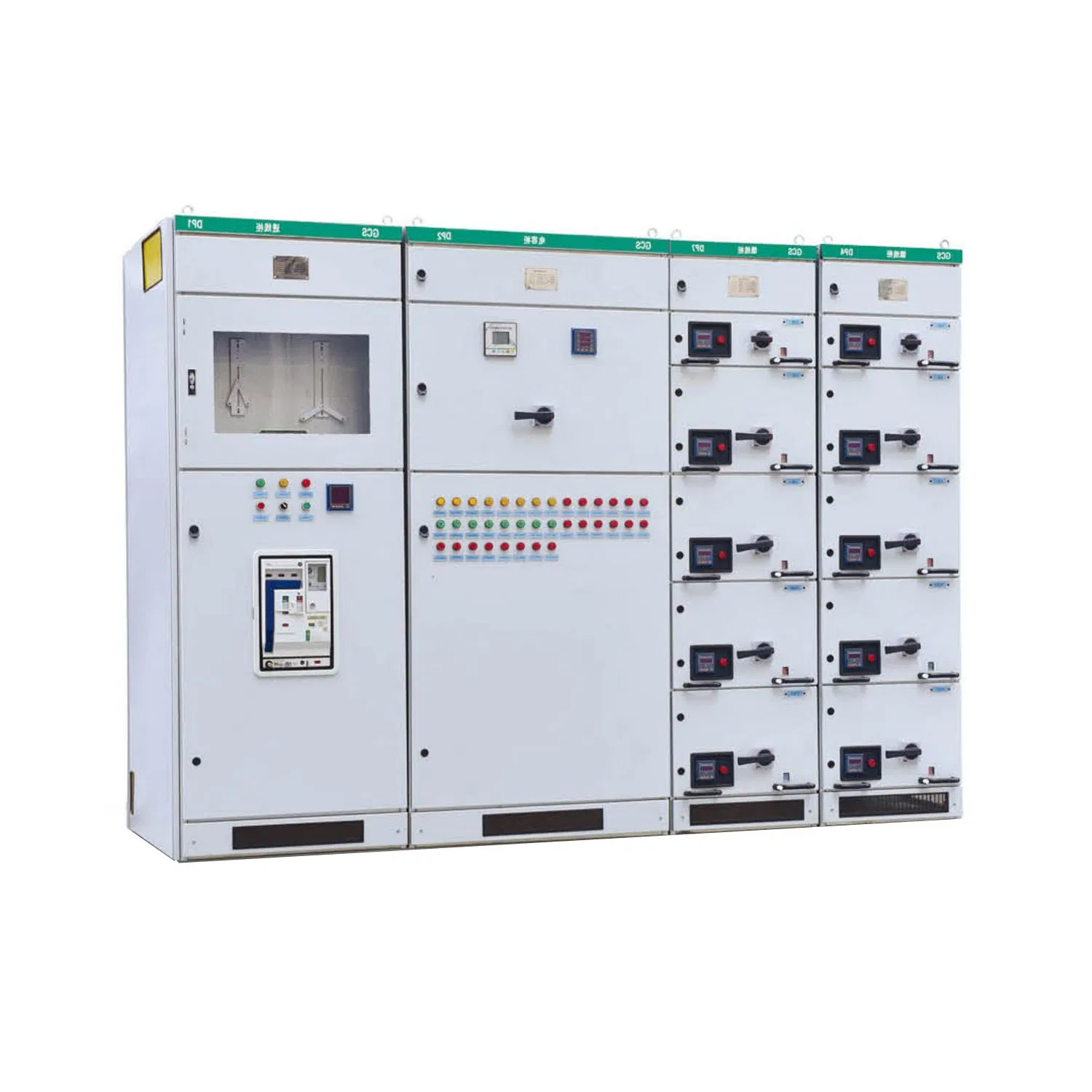

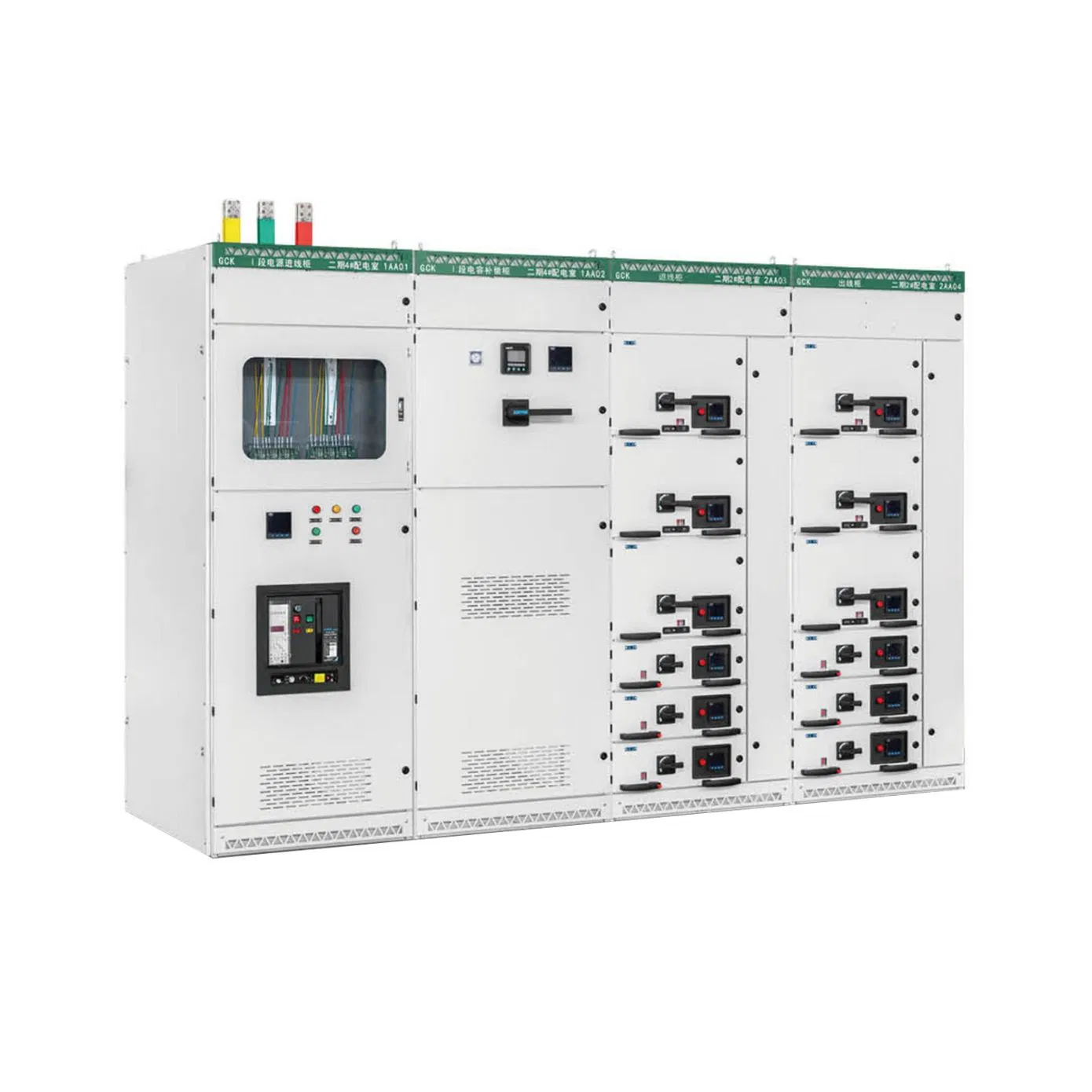

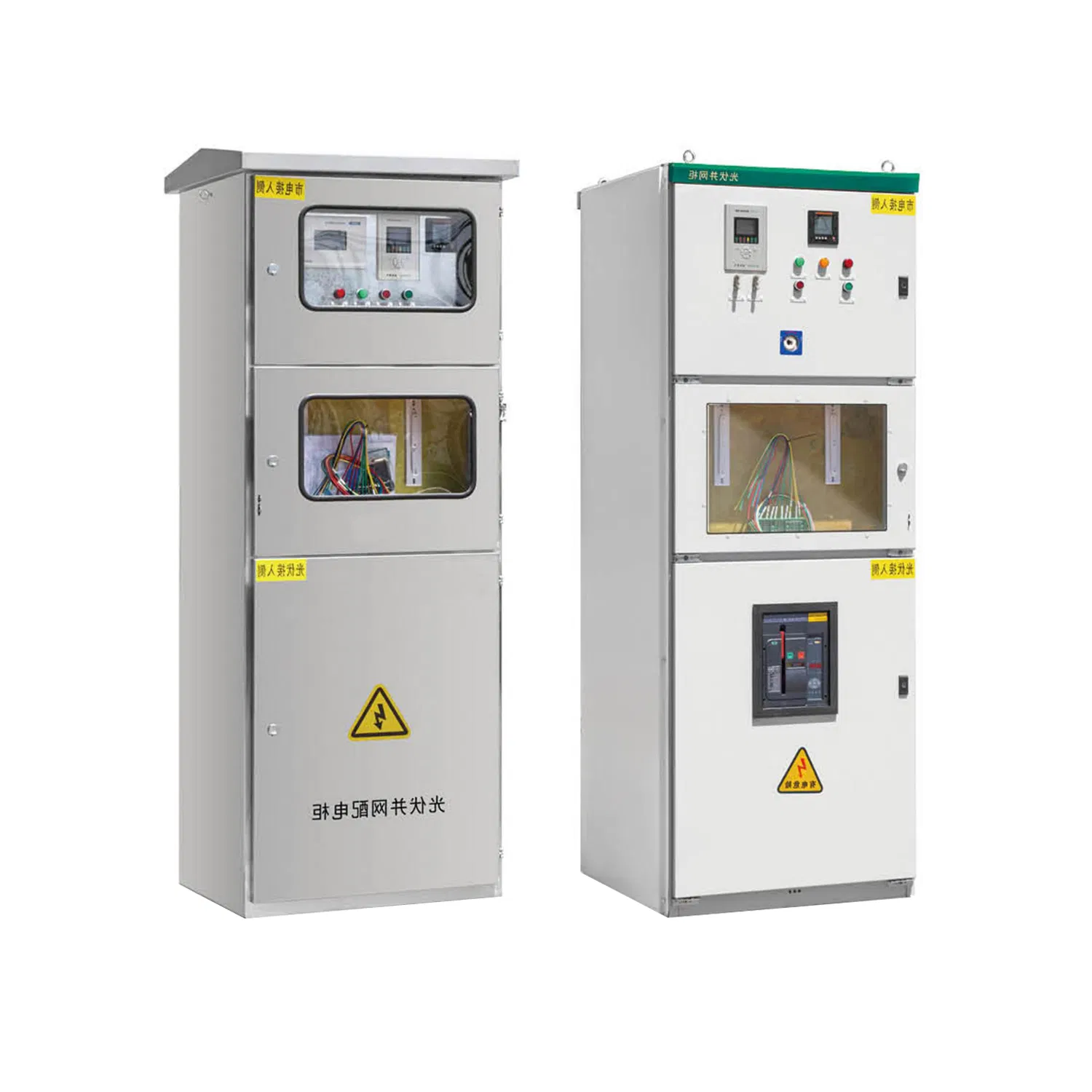

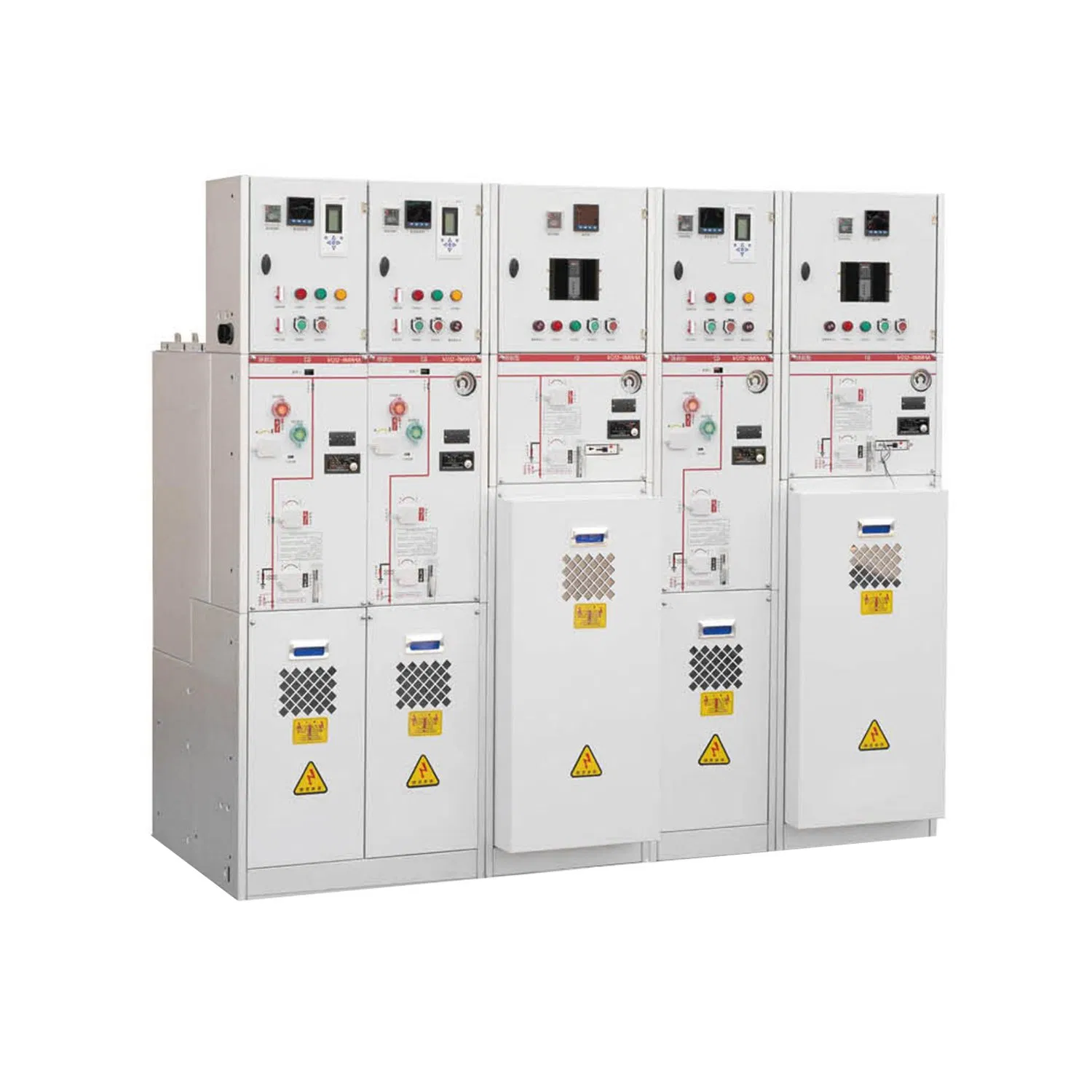

High-Capacity Gck Draw-out Switchgear System Ideal for Modern Industrial Plants & Commercial Power Distribution Networks

Customization:	Available
Type:	Distribution Metering Box
Structure:	Protection

Basic Information

Model NO.

GCK

Certification

CCC, ISO9001:2015

Form

All-packaged Type

Operation Voltage

High Voltage

Application Range

High-rise Buildings

Shell Material

Steel Plate

HS Code

853710909

Production Capacity

10000 Sets/Year

Product Description

The GCK-type low-voltage withdrawable switchgear is designed for three-phase AC systems with frequencies of 50Hz or 60Hz, rated voltages of 380V or 690V, and rated currents up to 4000A. It is suitable for both three-phase four-wire and three-phase five-wire power systems.

This switchgear is widely used in power plants, substations, industrial and mining enterprises, commercial buildings, hotels, airports, and ports for power distribution, conversion, control, and reactive power compensation.

Key Features

High Breaking Capacity: Excellent dynamic and thermal stability.
Versatile Configuration: Integrates Power Centre (PC) and Motor Control Centre (MCC) functions.
Advanced Structure: Technical performance matches advanced international standards.
Flexible Design: Can be configured as a combination of fixed and drawer-type cabinets.

Technical Parameters

Name	Unit	Technical Parameters
Rated insulation voltage	V	600, 1000
Rated working voltage	V	380, 690
Horizontal busbar rated current	A	1250, 1600, 2000, 3200, 4000
Vertical busbar rated current	A	1000
Maximum current of feeder circuit	A	2500
Maximum current of drawer circuit	A	630
Maximum capacity of control motor	kW	320
Rated frequency	Hz	50, 60
Horizontal bus short-time withstand current (1s)	kA	50, 80
Shell protection grade	-	IP30 / IP40
Effective height of functional unit	mm	1800

Operating Environment

Ambient Temperature: Upper limit +40°C, Lower limit -5°C. Average over 24h should not exceed +35°C.

Humidity: Relative humidity should not exceed 50% at +40°C. Higher humidity (e.g., 90% at +20°C) is permissible at lower temperatures.

Installation: Vertical installation (tilt ≤ 5°). Altitude should not exceed 2000 meters above sea level.

Industry Capabilities

The enterprise is a high-tech manufacturer specializing in dry-type transformers, oil-immersed transformers, high-low voltage switchgear, and prefabricated substations. With robust technical capabilities supported by advanced production and testing equipment, we provide comprehensive power distribution solutions.

The management systems are certified under ISO 9001, ISO 14001, and OHSMS 18001, reflecting a strong commitment to quality and sustainability.
