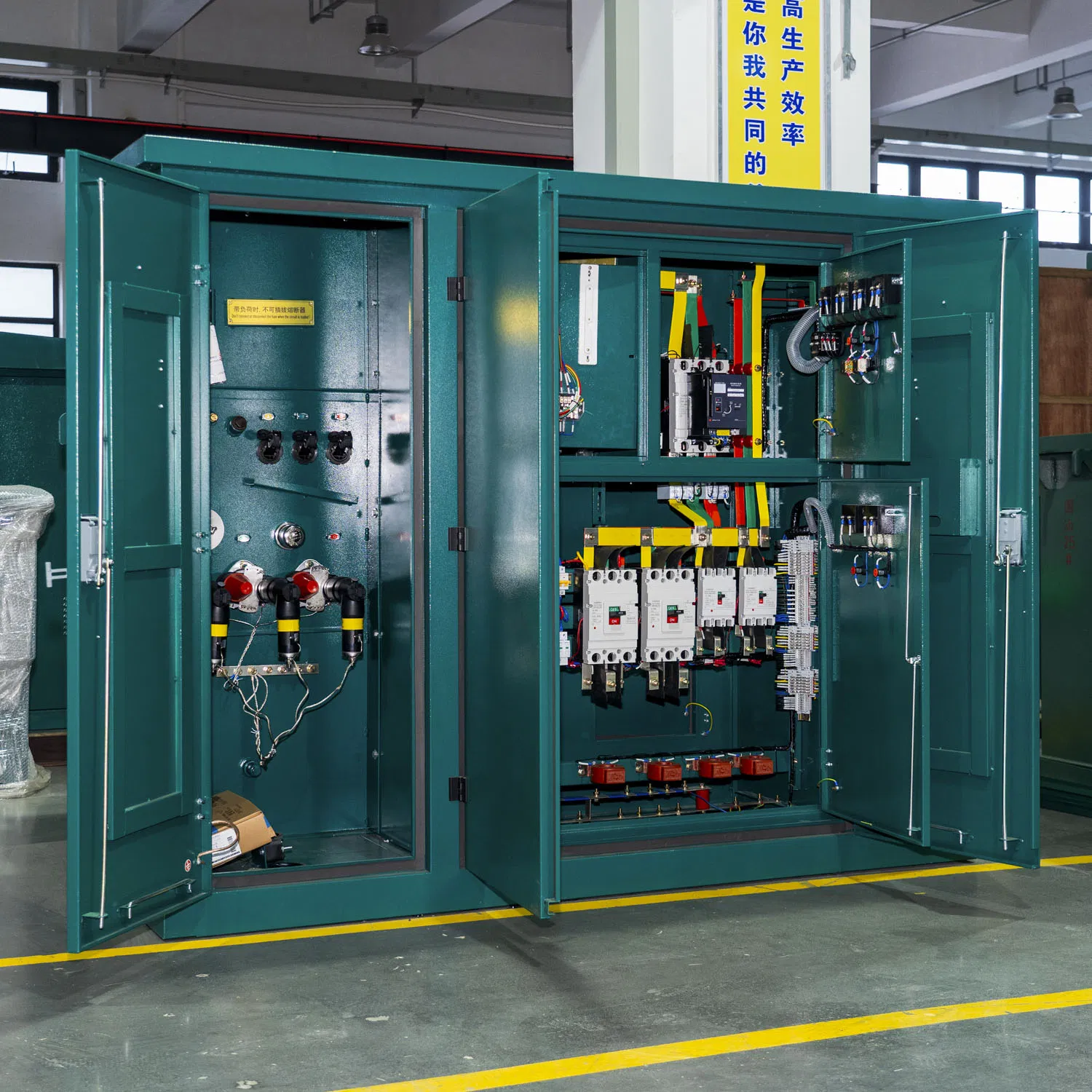

Industrial Power Distribution Switchgear Systems with Multi-Scenario Applications and Internal Component Views

Customization:	Available
Type:	Distribution Metering Box
Structure:	Fixed Board

i

Basic Information

Model NO.	SCQ-500
Certification	ISO9001:2000, VDE, CCC
Form	Partly-welded Type
Operation Voltage	High Voltage
Shell Material	Stainless Steel
Protection Grade	IP56 / IP23
Rated Voltage	33kv
Rated Current	630A
Frequency	50Hz
Capacity Range	50-2500kVA
Production Capacity	100,000 PCS/Year

★

Product Gallery

⚙

Technical Specification

Standards Compliance	IEC 61439-1/2, GB7251.1
Rated Operational Voltage	690V AC
Rated Insulation Voltage	1000V AC
Short-time Withstand Current (Icw)	50kA for 1 second
Degree of Protection	IP54 (Indoor) / IP65 (Customized)

✔

Manufacturing Excellence

As a modern high-tech enterprise integrating R&D, production, and sales, we have matured over three decades into a leading specialist in electrical manufacturing. Our product lines encompass over 300 products across seven major series, sold successfully worldwide.

Guided by the principle of "Quality First, Customers First, Reputation First," we maintain certifications including ISO 9001, CE, CB, UL, ETL, and CCC. Our philosophy focuses on premium service, integrity in operation, and pioneering innovation to build a brighter future for the global electrical industry.

▲

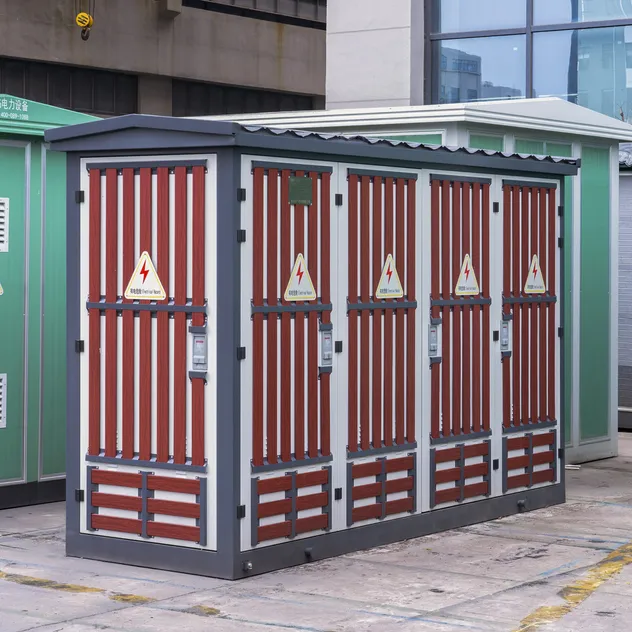

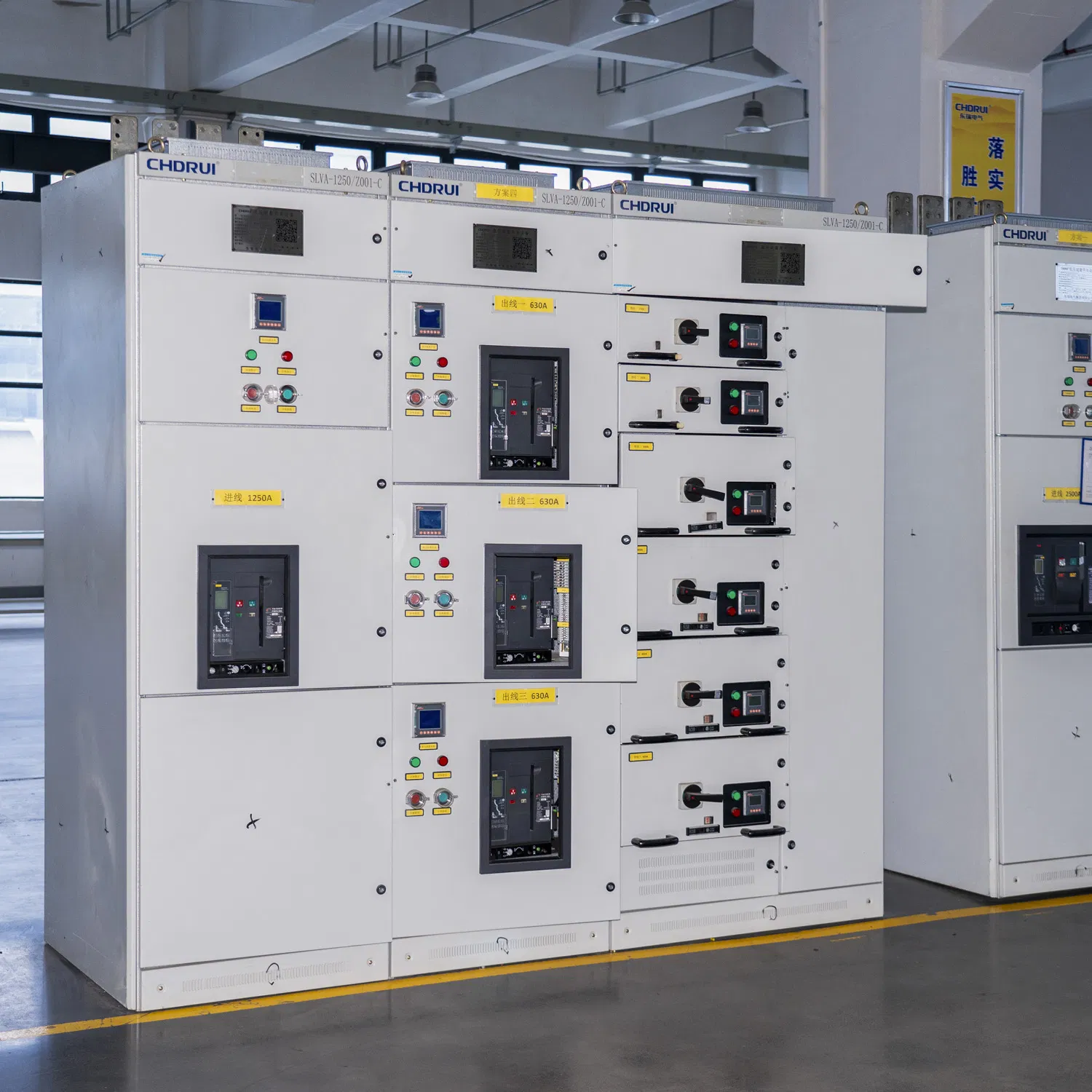

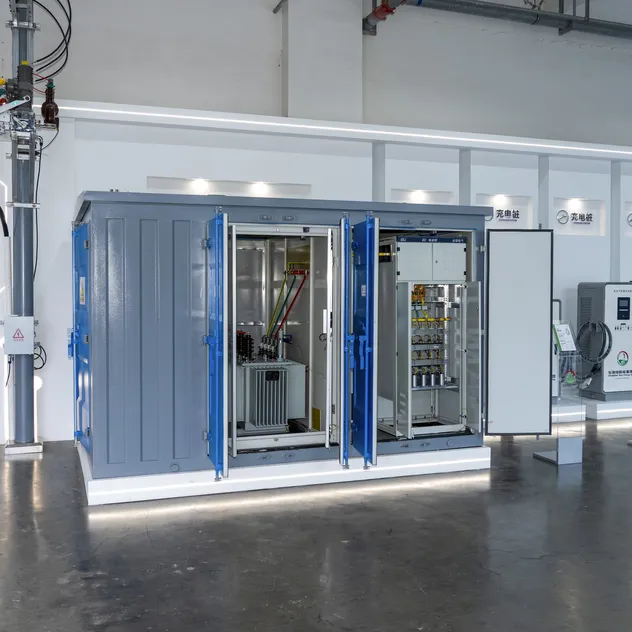

Multi-Scenario Applications

?

Frequently Asked Questions

Q1: What standards does your low voltage switchgear comply with?

Our switchgear is designed and manufactured in full compliance with the international IEC 61439 series (specifically IEC 61439-1 & -2). We hold complete Type Test Certification (TTA) from independent, accredited laboratories to validate performance and safety.

Q2: What is the meaning of "Form 4B" separation?

Form 4B per IEC 61439 specifies the highest degree of internal separation. It ensures complete isolation between busbars, functional units, and outgoing terminal compartments, enhancing safety by containing potential internal fault arcs and allowing safer maintenance.

Q3: What is the advantage of a withdrawable circuit breaker design?

A withdrawable design allows circuit breakers to be disconnected and moved to a "test" or "withdrawn" position without de-energizing the entire panel. This enables rapid maintenance or replacement, significantly minimizing downtime for critical systems.

Q4: What is the short-circuit withstand rating (Icw) of your panels?

Our standard panels are rated for a short-time withstand current (Icw) of 50kA for 1 second. This means the assembly can withstand thermal and electromagnetic stresses of a major fault while allowing upstream protection to clear the fault safely.

Q5: What is the typical delivery lead time for a custom switchgear project?

For standard configurations, the lead time is typically 4-6 weeks. For fully customized projects involving complex engineering, the lead time can range from 8 to 12 weeks depending on technical specifications.

Q6: Are higher protection grades available for harsh environments?

Yes, while our standard indoor degree of protection is IP54, we can provide customized solutions up to IP65 to meet the requirements of more demanding environmental conditions.
