Modular Outdoor Switchgear System with Maintenance-Free Power Distribution Design

Customization:	Available
Type:	Distribution Metering Box
Structure:	Modular / Draw-out Type

Send Inquiry

Product Description

📊 Basic Information

Model NO.	Customizable Translation	Certification	ISO9001:2000, CCC
Form	Partly-welded Type	Operation Voltage	Low Voltage (LV) / AC 380V/400V
Size	Customizable	Application Range	Industrial / Commercial / Data Center
Shell Material	Stainless Steel / Cold-Rolled Steel	Protection Grade	IP30/IP40/IP54/IP65
Product Type	Low-Voltage Switchgear	Performance	High Reliability / Modular
Function	Power Distribution / Control	Origin	China

⚙️ Product Description

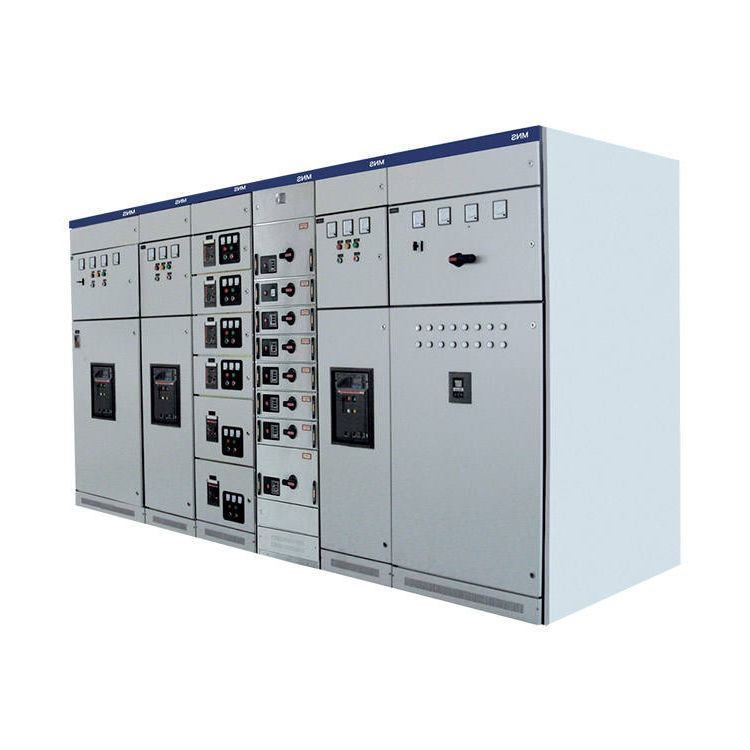

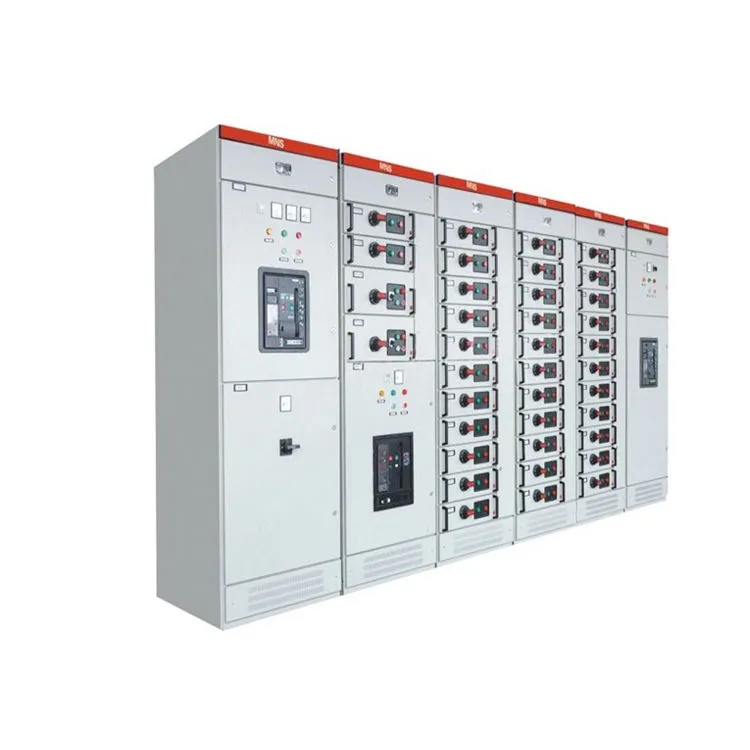

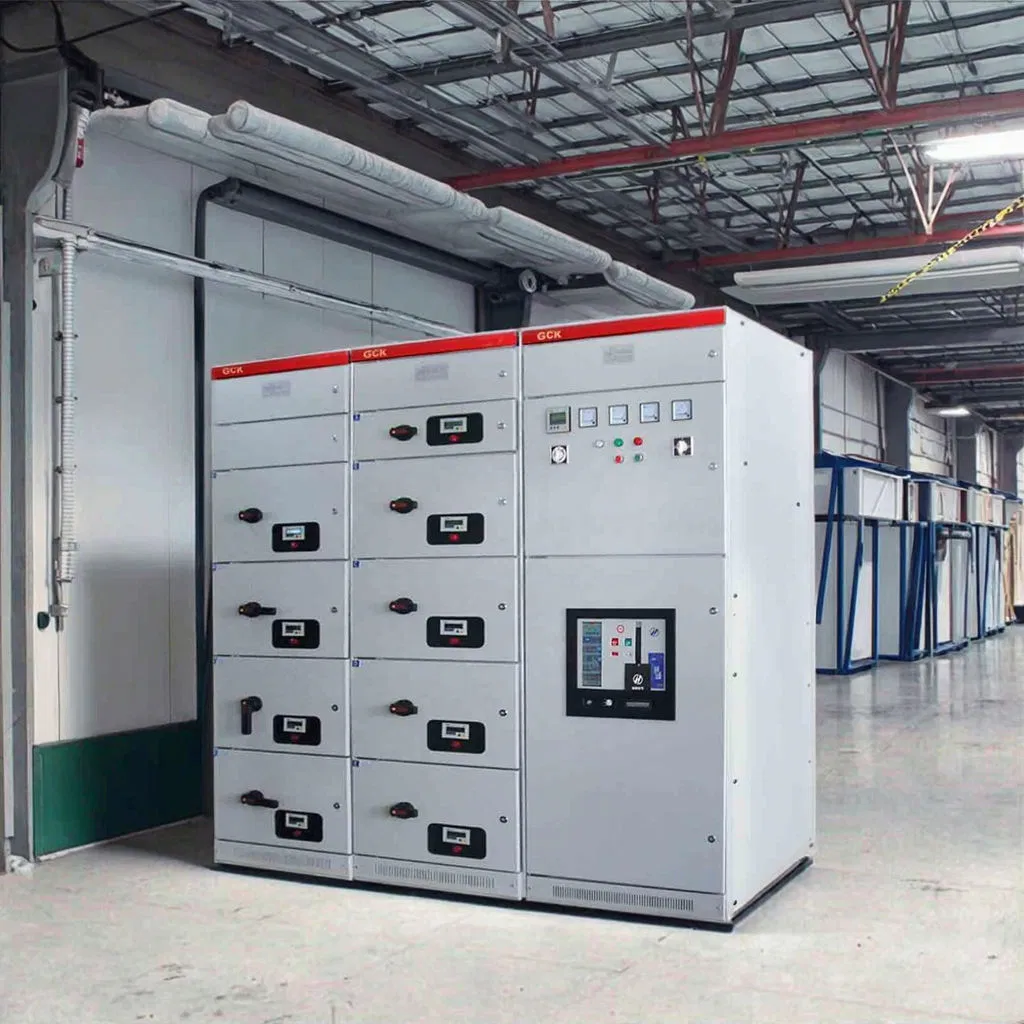

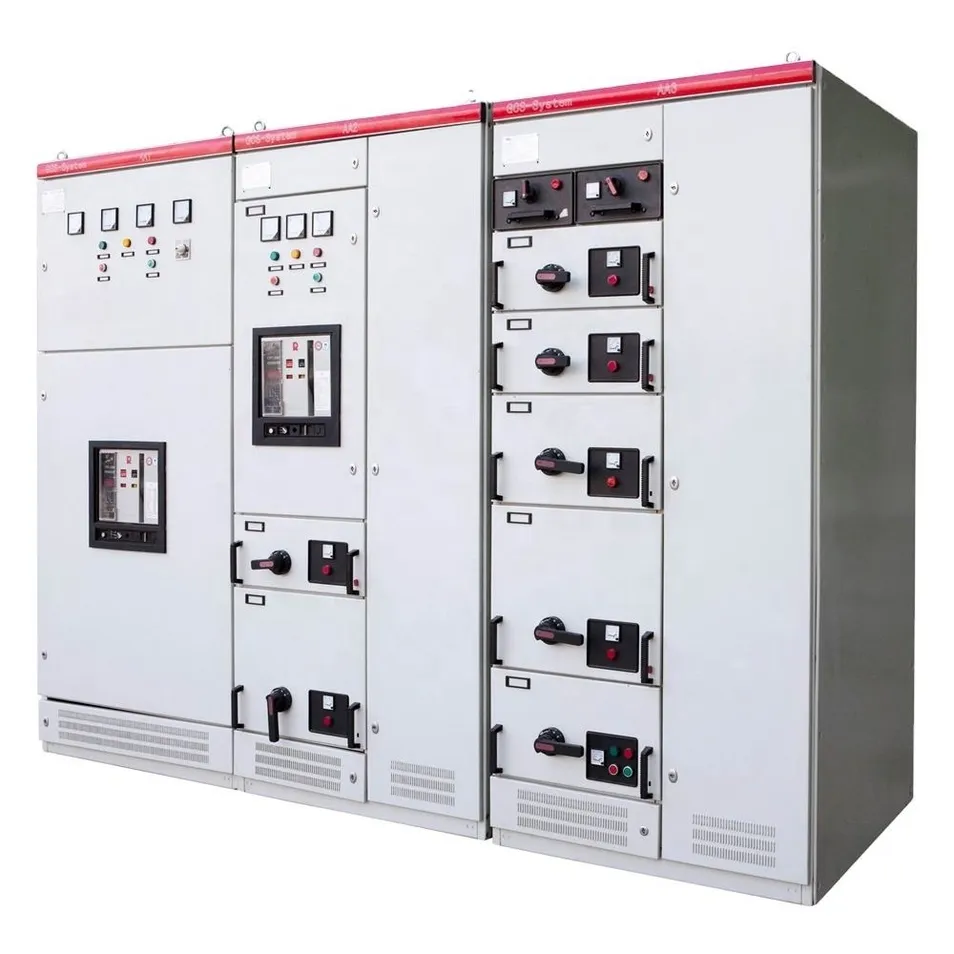

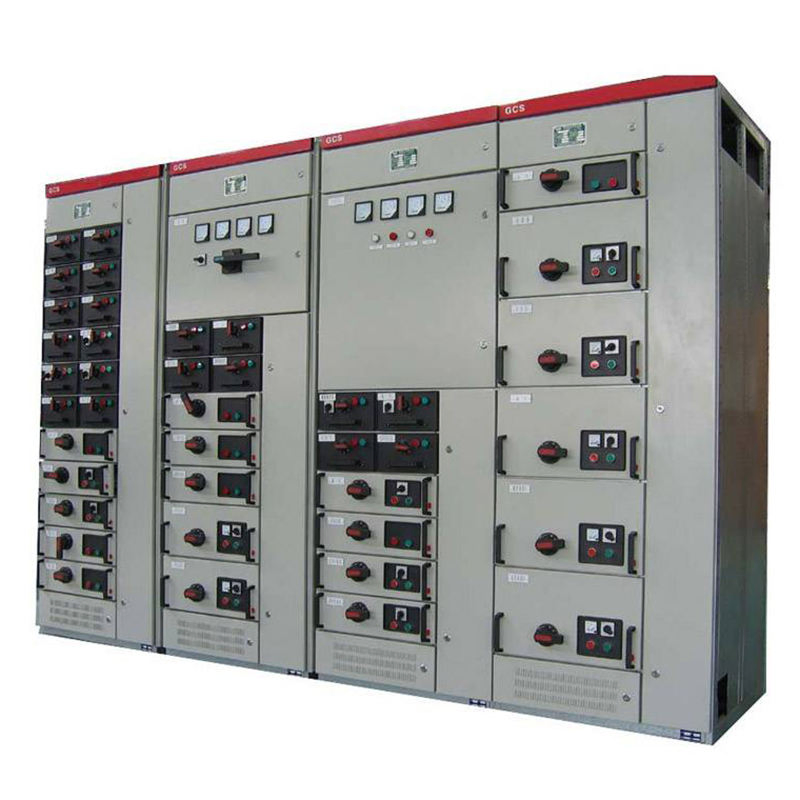

Modular Draw-out Switchgear

Our switchgear's modular design allows circuit arrangement into drawers for easy access. If a unit fails, it can be replaced without system shutdown—cutting downtime, costs, and interruptions.

Key Advantage: Minimize Downtime with Easy Maintenance and modular replacements.

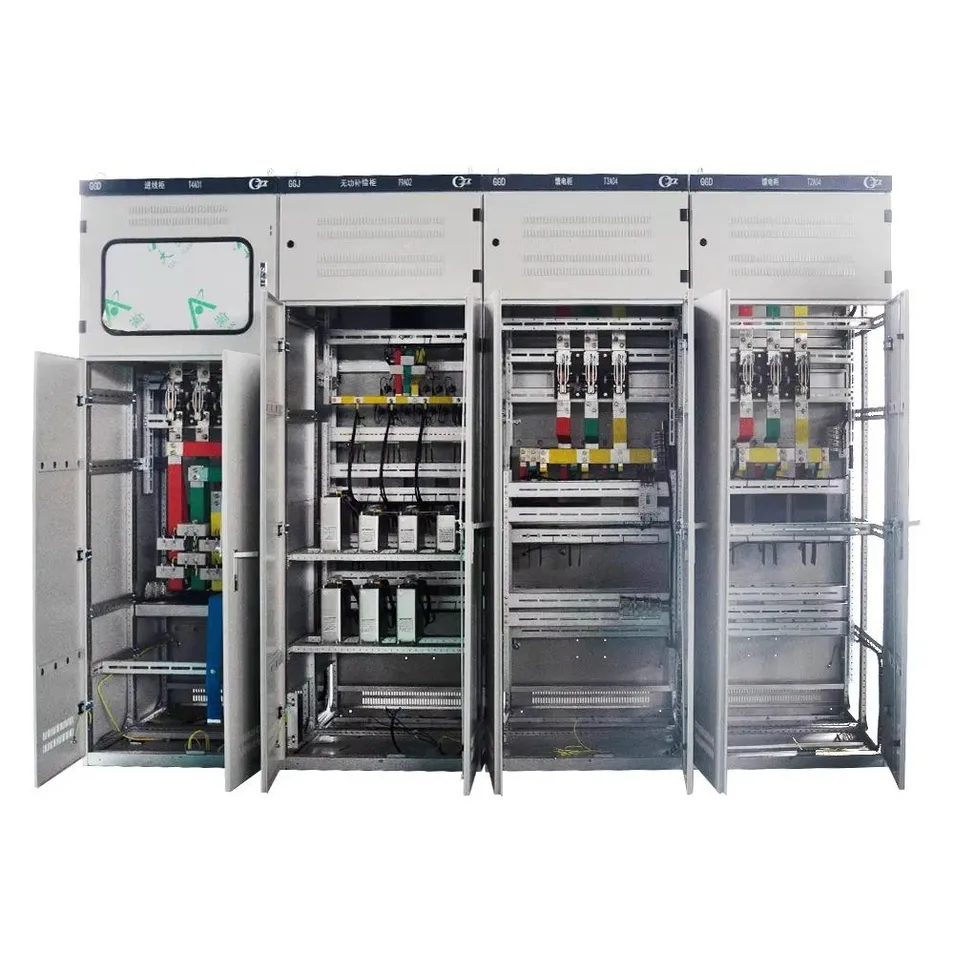

Superior Reliability & Safety

With IP30-IP40 protection, our cabinets ensure industrial safety. Integrated interlocks eliminate misoperation risks. High-grade copper busbars and premium insulating components ensure performance under high currents and maintain excellent short-circuit capability.

Technical Specifications

Material	Cold Rolled Steel / SS304 / SS316L	Voltage	220V / 380V / 400V
Current	63A - 400A (Customizable)	Frequency	50Hz / 60Hz

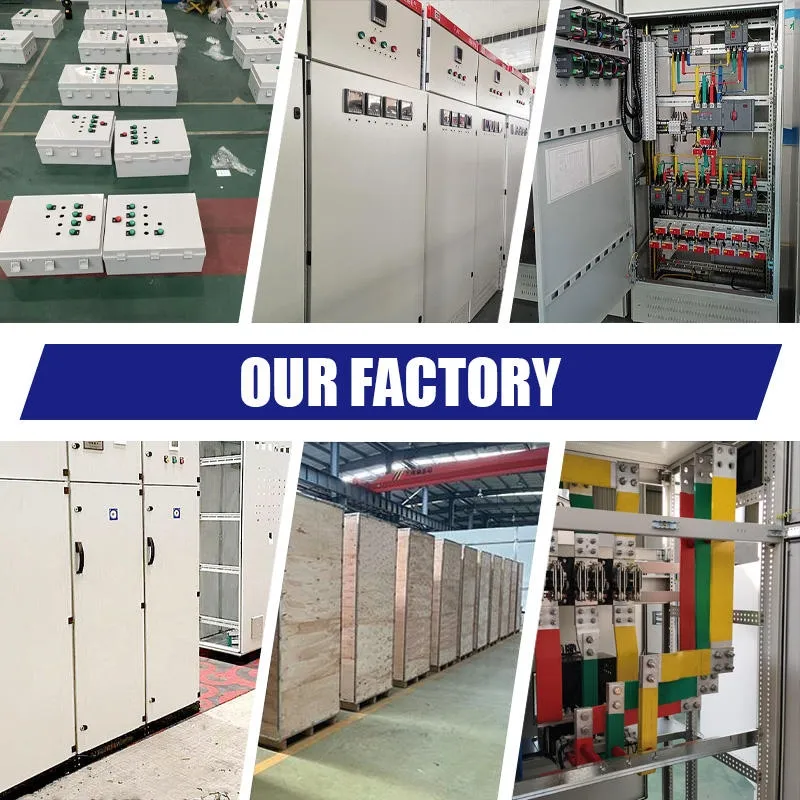

🏭 Factory & Quality Control

📦 Packing & Delivery

Standard export packing: high-quality cartons, wooden cases, or pallets tailored to transportation requirements ensuring product safety during transit.

🛠️ After Sales Service

🏢 Production Profile

❓ FAQ

Are you a manufacturer?

Yes, we are a professional manufacturer with advanced production sites and a skilled team supporting both OEM and ODM requirements.

What protection grades are available for the cabinets?

We offer customizable protection grades including IP30, IP40, IP54, and IP65 to suit different industrial and outdoor environments.

How can I get an accurate quotation?

Please provide detailed drawings (CAD/PDF/STEP), material preferences, surface treatment requirements, and total quantity for an accurate quote.

What materials are used for the switchgear shell?

Options include Cold-Rolled Steel, Stainless Steel 304, or Stainless Steel 316L, depending on your application needs.

How do you ensure product quality?

We implement full-process quality control, including rigorous supplier screening, source material inspection, and final testing with precision tools.

What are the available modes of transportation?

We support sea, air, and land transport, selected based on the cargo volume and your specific delivery requirements.
